(90.151.AF) - INSTRUMENT PANEL COVER

Запчасти Case 1221F (90.151.AF) - INSTRUMENT PANEL COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

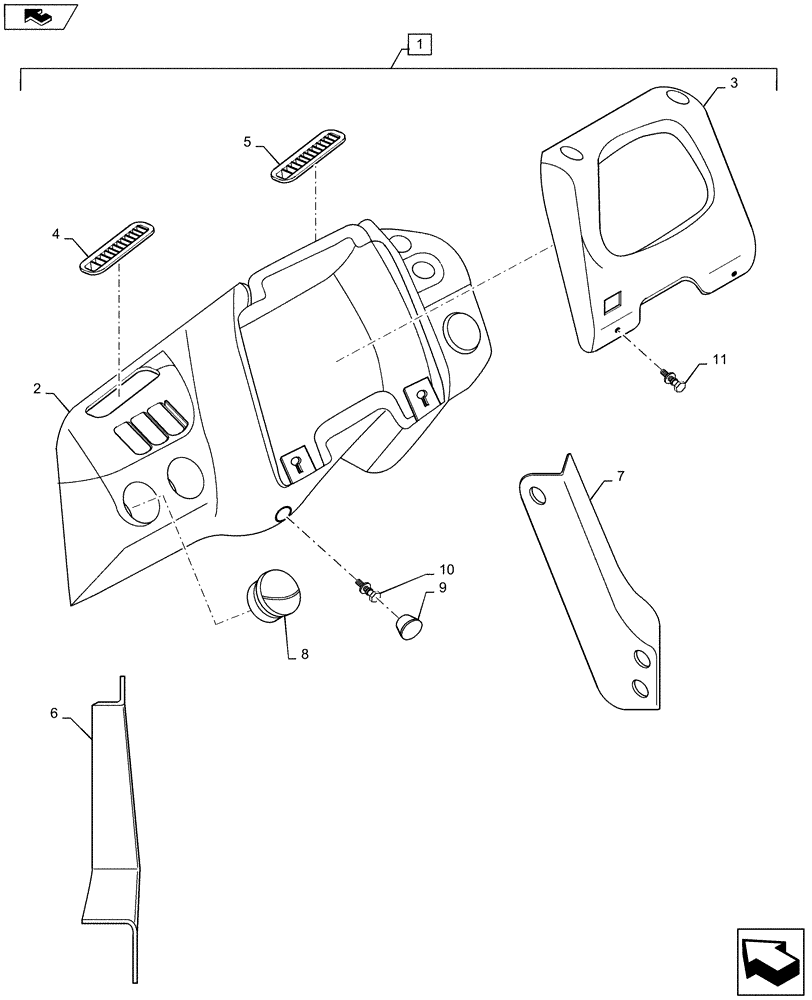

Схема запчастей Case 1221F - (90.151.AF) - INSTRUMENT PANEL COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
10
3
5
8
11
home
7
9
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71LM-30103

DASHBOARD

Dashboard Sub Assembly, Incl 2 - 10

1шт.

2

71LM-30113

DASHBOARD

Dashboard Body

1шт.

3

71LM-30123

DASHBOARD

Dashboard Center

1шт.

4

71LM-30133

NOZZLE

Air Deflector, Left Hand

1шт.

5

71LM-30143

NOZZLE

Air Deflector, Right Hand

1шт.

6

71LM-30153

COVER

Lower Cover. Left Hand

1шт.

7

71LM-30163

COVER

Lower Cover, Right Hand

1шт.

8

71Q6-22400

NOZZLE

Air Vent

4шт.

9

71Q6-22760

TRIM

Cap Trim

4шт.

10

S002-06015B

SCREW

Screw, Trushead

4шт.

11

S002-060166

SCREW

Screw, Thrushead

8шт.
