(90.150.AE) - CAB MOUNTING

Запчасти Case 1221F (90.150.AE) - CAB MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

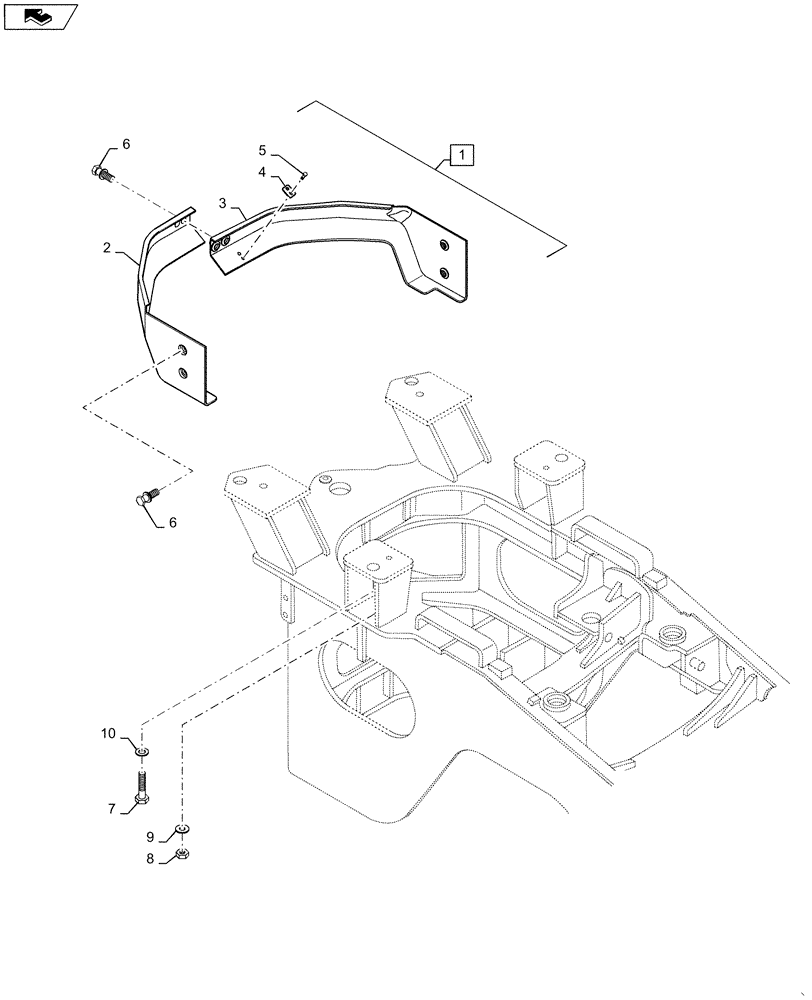

Схема запчастей Case 1221F - (90.150.AE) - CAB MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
home
7
10
8
9
2
6
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71LH-01014

COVER

Cab Low Cover Assembly, Incl 2 - 5

1шт.

2

71LH-01024

COVER

Cover, Front Left Hand

1шт.

3

71LH-01034

COVER

Cover, Front Right Hand

1шт.

4

71LM-01083

PLATE

1шт.

5

S037-122526

BOLT

2шт.

6

S037-122526

BOLT

8шт.

7

S017-300606

BOLT

4шт.

8

S205-16100B

NUT

4шт.

9

S441-160006

WASHER

Hardened

4шт.

10

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

Hardened

4шт.

Выбрано товаров: 10
