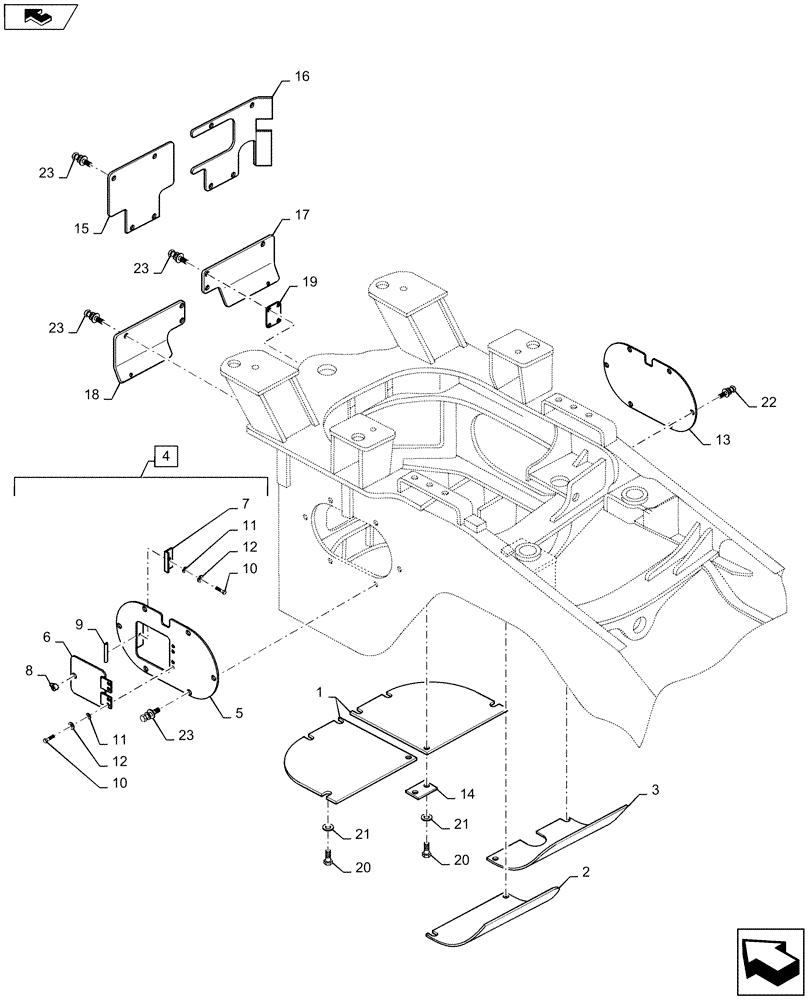

Запчасти Case 1221F (90.119.AB) - UNDERCARRIAGE, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

51LQ-90080CY

PLATE

2шт.

2

51LQ-90240CY

COVER

LH

1шт.

3

51LQ-90250CY

COVER

RH

1шт.

4

51LQ-90011CY

COVER

Incl 5 - 12, 23

1шт.

5

51LQ-90401

COVER

1шт.

6

51LH-90440

COVER

1шт.

7

74L3-11290

BUMPER

2шт.

8

71L1-22270

LOCK

1шт.

9

51LH-90470

PLATE

1шт.

10

S015-060206

BOLT

6шт.

11

S403-06200B

WASHER

Plain

6шт.

12

S411-060006

WASHER,6mm ID

Spring

6шт.

13

51LQ-90020CY

COVER

RH

1шт.

14

51L6-90120CY

PLATE

3шт.

15

51LQ-90172CY

PLATE

1шт.

16

51LQ-90212CY

PLATE

1шт.

17

51LQ-90062CY

COVER

1шт.

18

51LQ-90072CY

COVER

1шт.

19

51LQ-90090CY

PLATE

1шт.

20

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

16шт.

21

S441-160006

WASHER

16шт.

22

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

Bolt With Washer

12шт.

23

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

Bolt With Washer

16шт.
