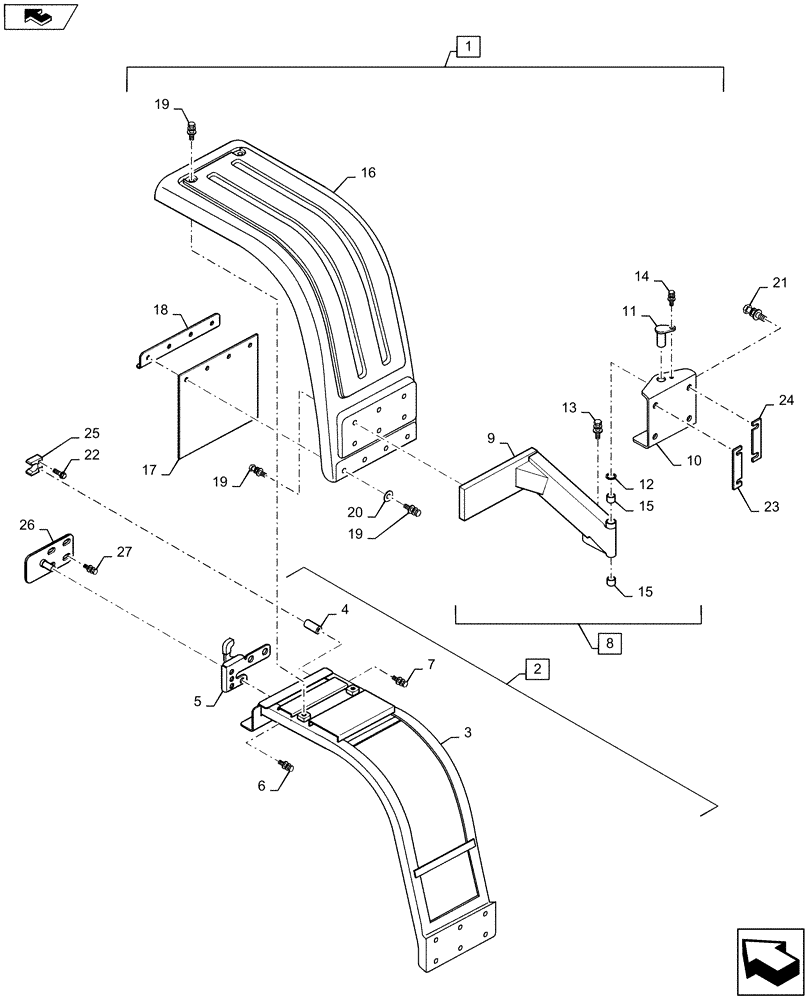

Запчасти Case 1221F (90.116.BA) - MUDGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

72LQ-80010CB

GUARD

Left Hand Assembly, Incl 2 - 20

1шт.

1

72LQ-80020CB

GUARD

Right Hand Assembly, Incl 2 - 20

1шт.

2

72LQ-80110CB

SUPPORT

Left Hand Assembly, Incl 3 - 7

1шт.

2

72LQ-80210CB

SUPPORT

Right Hand Assembly, Incl 3 - 7

1шт.

3

72LQ-80120CB

SUPPORT

Left Hand Assembly

1шт.

3

72LQ-80220CB

SUPPORT

Right Hand Assembly

1шт.

4

72LM-80172

STOP

Inner Stop

2шт.

5

72LM-80310

LATCH

Left Hand Assembly

1шт.

5

72LM-80320

LATCH

Right Hand Assembly

1шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Bolt With Washer

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Bolt With Washer

2шт.

8

72LQ-80130CB

HINGE

Left Hand Assembly, Incl 9 - 15

1шт.

8

72LQ-80230CB

HINGE

Right Hand Assembly, Incl 9 - 15

1шт.

9

72LQ-81330CB

BRACKET

Left Hand

1шт.

9

72LQ-82330CB

BRACKET

Right Hand

1шт.

10

72LM-81401CB

BRACKET

Left Hand

1шт.

10

72LM-82401CB

BRACKET

Right Hand

1шт.

11

72LM-81440

PIN

1шт.

12

72LM-81450

SPACER

1шт.

13

72LM-80160

PLUNGER

1шт.

14

S035-082016

BOLT

Bolt With Washer

1шт.

15

S731-025015

BUSHING

DU

2шт.

16

72LK-80181

GUARD

Mud Guard

1шт.

17

72LL-70140

PAD

Rubber

1шт.

18

72LL-70200CB

PLATE

1шт.

19

S037-123556

BOLT

12шт.

20

64L3-01120

WASHER

4шт.

21

71Q6-50040

BOLT

8шт.

22

S109-060256

BOLT

4шт.

23

71LB-82080

SHIM

1.6 Thick

2шт.

24

71LB-82070

SHIM

3.0 Thick

2шт.

25

72LM-89010

STOP

2шт.

26

72LM-80330

STRIKER

2шт.

27

S037-103056

BOLT,M10 x 1.5 x 30mm

4шт.
