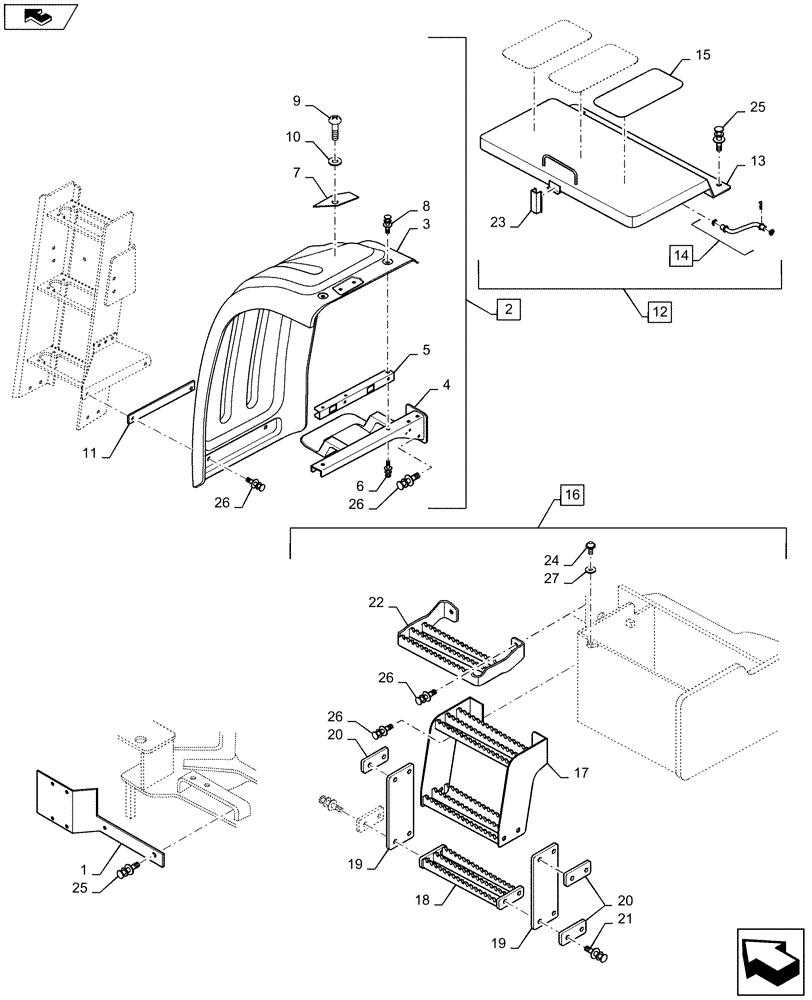

Запчасти Case 1221F (90.116.AC) - REAR FENDER AND , FOOT BOARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

75LQ-60050CY

COVER

LH

1шт.

1

75LQ-60060CY

COVER

RH

1шт.

2

79LQ-60070

REAR FENDER

LH, Incl 3 - 10, 26

1шт.

2

79LQ-60080

REAR FENDER

RH

1шт.

3

72LK-60702

REAR FENDER

LH

1шт.

3

72LK-60802

REAR FENDER

RH

1шт.

4

79LQ-60720

SUPPORT

LH

1шт.

4

79LQ-60820

SUPPORT

RH

1шт.

5

72LK-60732CB

SUPPORT

1шт.

5

72LK-60732CB

SUPPORT

1шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

7

79LQ-60740

TREAD

1шт.

7

79LQ-60840

TREAD

1шт.

8

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

8

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

9

S179-120256

SCREW

1шт.

9

S179-120256

SCREW

1шт.

10

S403-125006

WASHER

1шт.

10

S403-125006

WASHER

1шт.

11

72LK-60100

PLATE

2шт.

12

75LQ-60031CY

COVER

Incl 13 - 15, 23, 25

2шт.

13

75LQ-60031CY

COVER

1шт.

14

72Z2-40771

STAY

1шт.

15

91E1-26300

DECAL

3шт.

16

77LK-60270CB

STEP

Incl 17 - 21

2шт.

17

77LK-62700CB

STEP

1шт.

18

77LL-62710CB

PLATE

1шт.

19

72LH-63150

RUBBER BLOCK

2шт.

20

72LM-63250CB

PLATE

4шт.

21

S037-103556

BOLT

8шт.

22

77LP-60240CB

STEP

2шт.

23

72LM-60180

LATCH

2шт.

24

71EH-13150

SILENTBLOC

4шт.

25

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

24шт.

26

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

20шт.

27

S285-10100B

NUT

4шт.
