(90.108.AC[06]) - DECALS, ENGLISH

Запчасти Case 1221F (90.108.AC[06]) - DECALS, ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

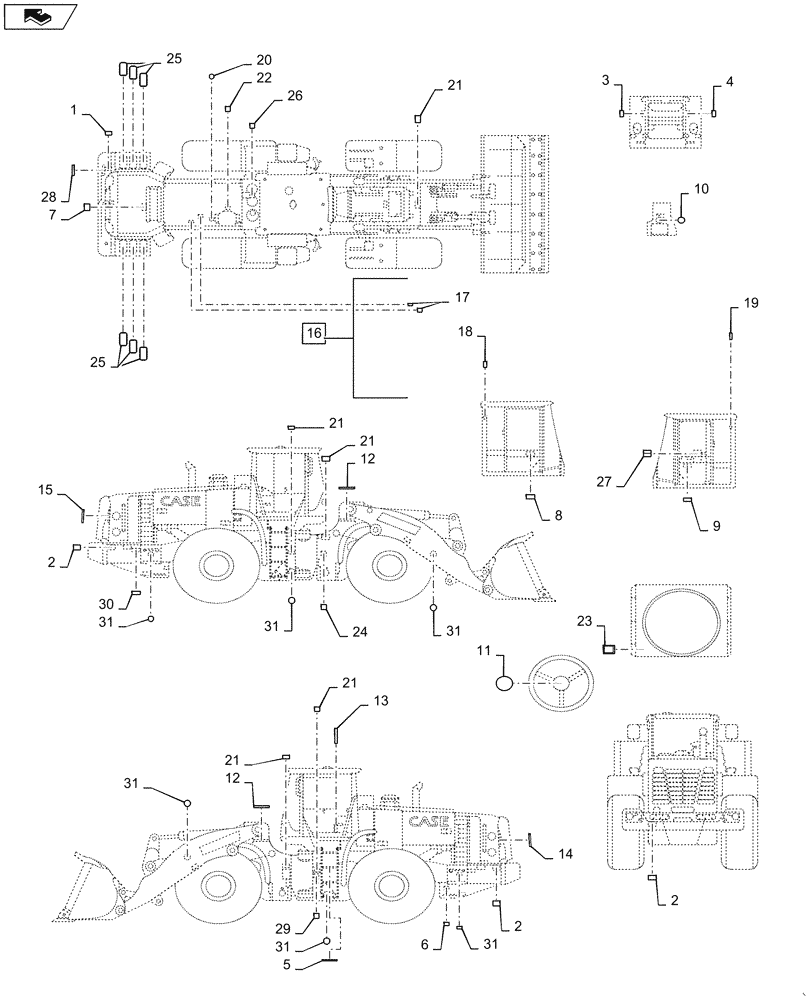

Схема запчастей Case 1221F - (90.108.AC[06]) - DECALS, ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
31
19
20
23
31
12
6
22
11
2
27
10
31
31
2
25
21
18
31
30
8
home
26
7
31
4
1
3
29
15
17
12
5
21
14
28
2
21
24
16
25
21
21
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

91M8-01140

DECAL

Fueling

1шт.

2

328752A1

DECAL

K/Clear

3шт.

3

91LH-01150

DECAL

Grease(A),LH/FR

1шт.

4

91LH-01160

DECAL

Grease(B),RH/FR

1шт.

5

91LQ-01170

DECAL

Grease(C)-RH/RR

1шт.

6

91LB-01370

DECAL

Drain/Engine

1шт.

7

329044A1

WARNING DECAL,168mm x 88mm H

Radiator Cap

1шт.

8

321-7030

WARNING DECAL

Rollover

1шт.

9

329051A1

DECAL

Alternate Cap

1шт.

10

91LQ-01500

DECAL

Pressure Check

1шт.

11

91LQ-11180

DECAL

Steering Wheel

1шт.

12

84493112

DECAL

Ride Control

1шт.

13

91LQ-01210

DECAL

Case Com Cab

2шт.

14

91LQ-01300

DECAL

Grill Side Cab(LH)

1шт.

15

91LQ-01400

DECAL

Grill Side(RH)

1шт.

16

93LQ-00080

DECAL

Not Illustrated, Incl 17 - 19

1шт.

17

91N6-01111

DECAL

Turbo Cover

2шт.

18

91Q6-07280

DECAL

Hammer

1шт.

19

91Q6-07290

DECAL

Fire Extingusher

1шт.

20

E134402

DECAL

Not Step

1шт.

21

328904A1

DECAL

Pre Accumalator

5шт.

22

8603092

WARNING DECAL,55mm x 95mm H

Not Use Ether

1шт.

23

332512A1

DECAL

Fan Entallement

1шт.

24

329049A1

DECAL

Run Over Hazard

1шт.

25

91E1-26300

DECAL

Step Thread

2шт.

26

91Q6-03230

DECAL

Fuel Shut Off

2шт.

27

91Q4-07180

DECAL

Water Seperator

1шт.

28

98Q6-07180

DECAL

Ultrall/Sulfar

1шт.

29

91LM-01700

DECAL

T/M Oil Speck

1шт.

30

91LQ-02120

DECAL

Jump Start

1шт.

31

21EK-10150

DECAL

Reflector Side

6шт.
