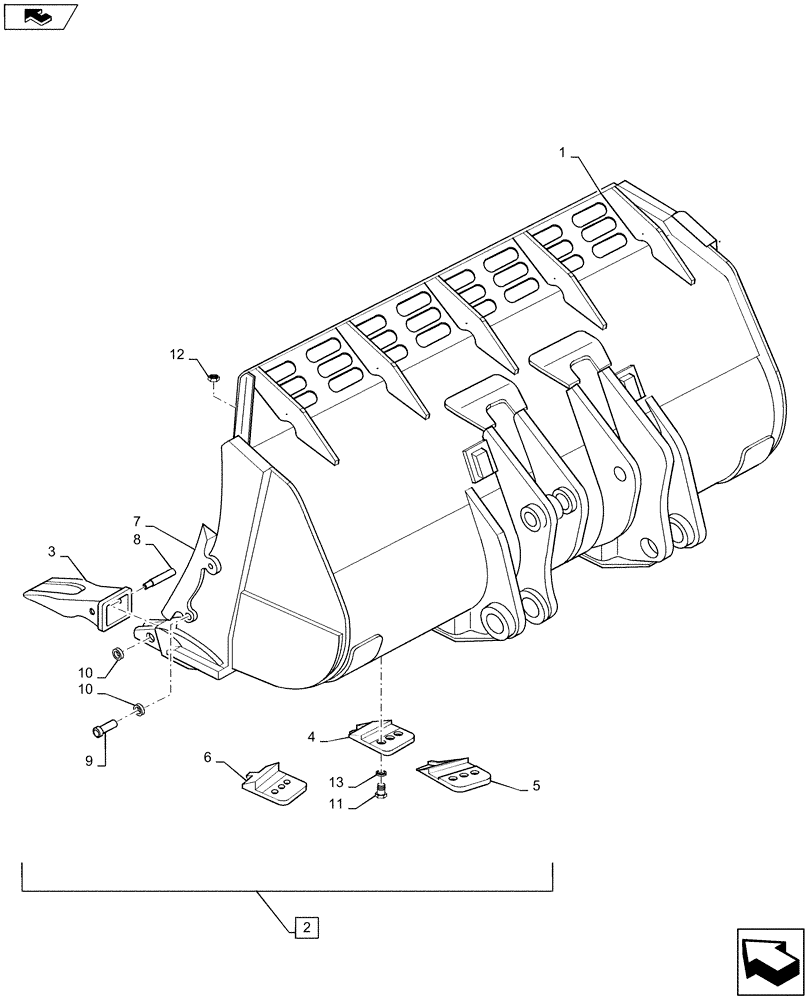

Запчасти Case 1221F (84.100.AB[01]) - BUCKET TOOTH (84) - BOOMS, DIPPERS & BUCKETS

1

61LQ-06510CB

BUCKET

1шт.

2

61LQ-06960CB

BUCKET TOOTH

Incl 3 - 13

1шт.

3

61LH-06830CB

BUCKET TOOTH

8шт.

4

61LH-06840CB

SKID PLATE

Segment - Center

1шт.

5

61LH-06850CB

SKID PLATE

Segment - RH

3шт.

6

61LH-06860CB

SKID PLATE

Segment - LH

3шт.

7

61LH-06870CB

GUARD

Vertical Protector

2шт.

8

61LH-06880

PIN

Tooth

8шт.

9

61LH-06890

PIN

Protector

2шт.

10

61LH-06900

LOCK WASHER

10шт.

11

61L6-00841

BOLT

Tooth

21шт.

12

S206-36100B

NUT

21шт.

13

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

Hardened

21шт.
