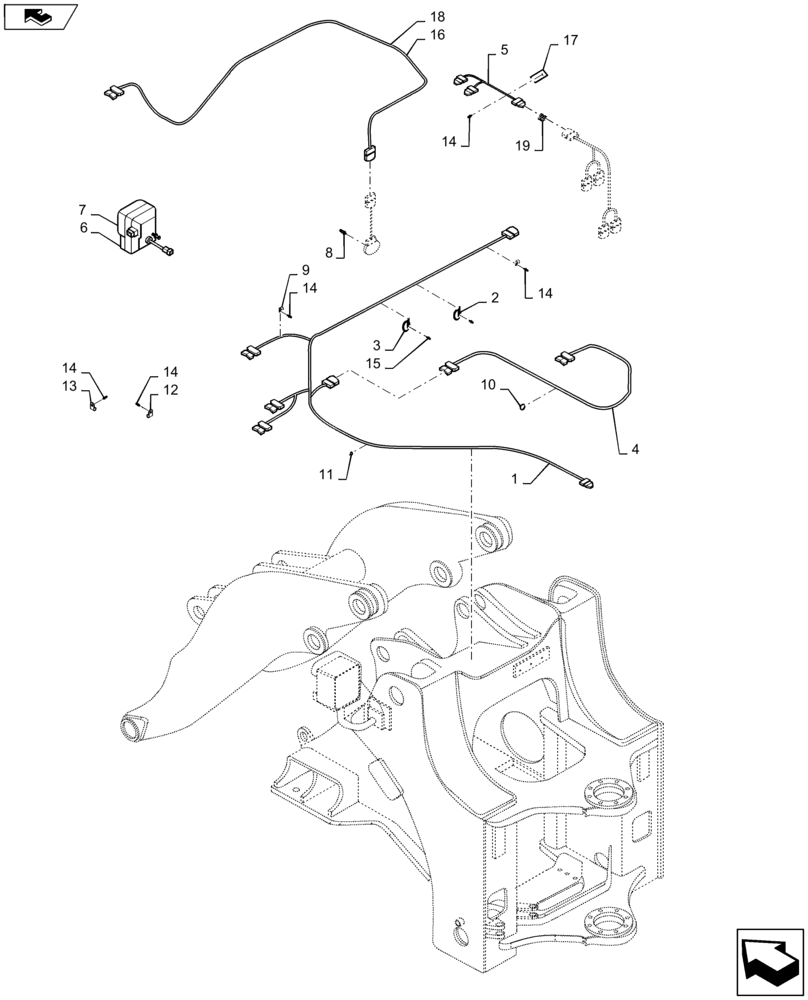

Запчасти Case 1221F (55.100.AF[01]) - ENGINE, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

1

21LQ-20511

WIRE HARNESS

Front

1шт.

2

21Q8-10060

HORN

High

1шт.

3

21Q8-10050

HORN

Low

1шт.

4

21LK-02301

WIRE HARNESS

1шт.

5

21LB-34321

WIRE HARNESS

1шт.

6

21LM-02220

LH HEADLAMP

1шт.

6

21EK-10131

BULB

Driving Light

1шт.

6

21EK-10250

BULB

Turn Signal and Position Signal

1шт.

6

21EK-10290

BULB

Lower Turn Signal

1шт.

7

21LM-02230

RH HEADLAMP

1шт.

7

21EK-10131

BULB

Driving Light

1шт.

7

21EK-10250

BULB

Turn Signal and Position Signal

1шт.

7

21EK-10290

BULB

Lower Turn Signal

1шт.

8

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

9

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

6шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

8шт.

11

S554-054300

BAND

3шт.

12

31L7-10190

CLAMP,15mm ID

3шт.

13

31L7-10200

CLAMP,25mm ID

4шт.

14

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

15шт.

15

S037-101526

BOLT,M10 x 1.5 x 15mm

2шт.

16

21LQ-02110

WIRE HARNESS

1шт.

17

21LM-02411CY

PLATE

2шт.

18

21LQ-02120

WIRE HARNESS

1шт.

19

25D1-10640

CLIP

1шт.
