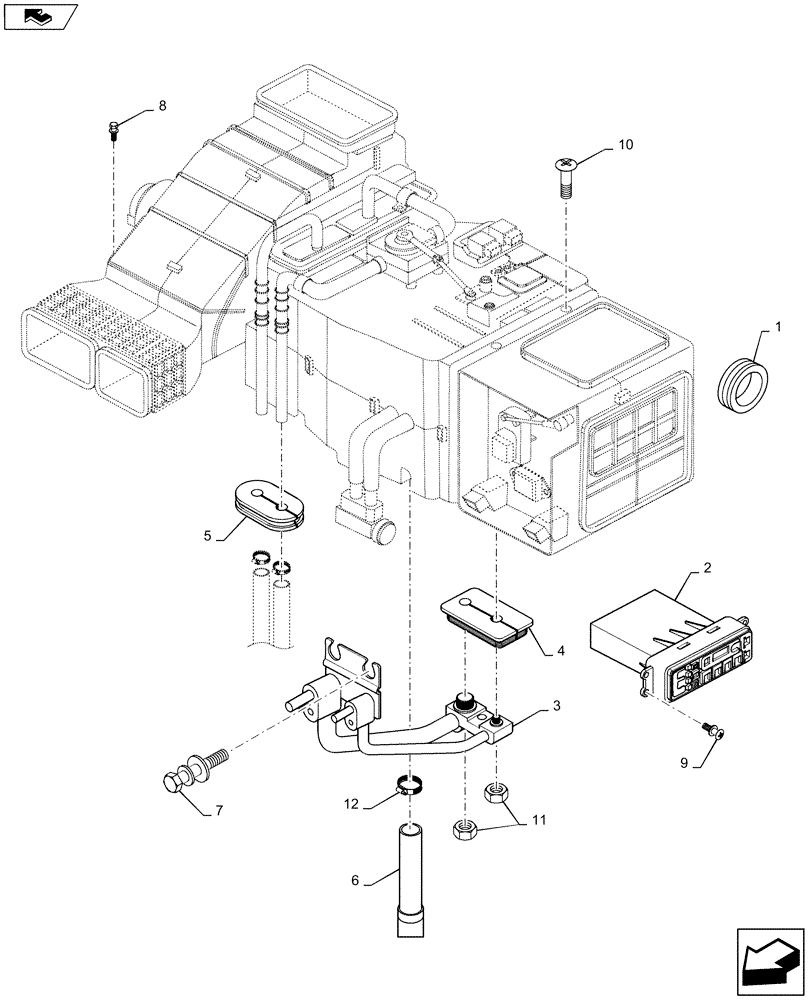

Запчасти Case 1221F (50.200.CD) - CAB AIR CONDITIONING AND HEATER SUB ASSEMBLY (50) - CAB CLIMATE CONTROL

1

S681-190400

GROMMET

1шт.

2

11LM-90070

MANIFOLD

1шт.

2

11LM-90070R

REMAN ELECT CONTROL

1221F WHEEL LOADER TIER 4 (NA) (8/13-)

1шт.

2

11LM-90070C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

11LM-96050

PIPE

Air Conditioning

1шт.

4

11Q6-90430

GROMMET

1шт.

5

11Q6-90440

GROMMET

1шт.

6

11EK-92130

HOSE

Drain

1шт.

7

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

Bolt With Washer

2шт.

8

S037-122056

BOLT

Bolt With Washer

4шт.

9

S131-052046

CAPTIVE WASHER SCREW

Screw With Washer

4шт.

10

S151-040126

SELF-TAP SCREW

4шт.

11

S285-08100B

FLANGE NUT

1шт.

12

S520-020000

HOSE CLAMP

1шт.
