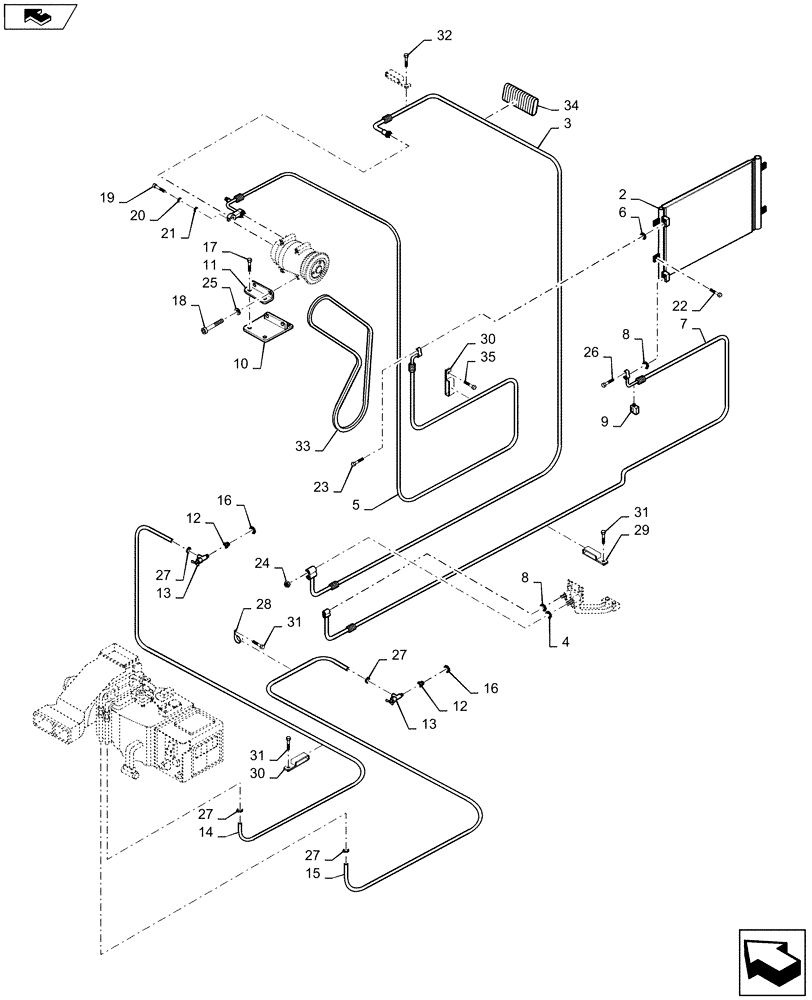

Запчасти Case 1221F (50.200.CD[01]) - AIR CONDITIONER AND HEATER , MOUNTING (50) - CAB CLIMATE CONTROL

1

11ND-90660

AIRCOND. COMPRESSOR

1шт.

1

11ND-90660R

REMAN-A/C COMPRESSOR

1221F WHEEL LOADER - TIER 4 (NA) (8/13-)

1шт.

1

11ND-90660C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

11Q6-90071

CONDENSER

1шт.

3

11LQ-95020

HOSE

Hose- Suction

1шт.

4

A305000203-2

O-RING

1шт.

5

11LQ-95031

HOSE

Discharge

1шт.

6

87742537

O-RING

1шт.

7

11LQ-95041

HOSE

Liquid

1шт.

8

87742539

O-RING

2шт.

9

A802200100-2

PRESSURE SWITCH

1шт.

10

11LQ-95010

BRACKET

1шт.

11

11LQ-95090

BRACKET

1шт.

12

11ND-90142

HYD CONNECTOR

2шт.

13

11EH-90100

VALVE

2шт.

14

11LM-90360

HEATER HOSE

1шт.

15

11LQ-90261

HEATER HOSE

1шт.

16

Y161-027001

O-RING

2шт.

17

S037-084056

BOLT

Bolt With Washer

4шт.

18

S109-080906

BOLT

Bolt With Washer

2шт.

19

S018-100356

HEX SOC SCREW

1шт.

20

892-11010

LOCK WASHER,M10

1шт.

21

S403-10200B

WASHER

Plain

1шт.

22

S035-082526

BOLT,M8 x 1.25 x 25mm

Bolt With Washer

4шт.

23

S035-083026

BOLT

Bolt With Washer

1шт.

24

S285-06100B

FLANGE NUT

2шт.

25

S403-08200B

WASHER

Plain

2шт.

26

S035-063526

BOLT

Bolt With Washer

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

28

31L7-10200

CLAMP,25mm ID

Tube

1шт.

29

31L7-10240

CLAMP

Tube INS

3шт.

30

31L7-10250

CLAMP

Tube Ins, Single

2шт.

31

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

Bolt With Washer

4шт.

32

S037-122056

BOLT

Bolt With Washer

1шт.

33

11QB-00160

BELT

Air Con

1шт.

34

P753-240012

HOSE PROTECTION

1шт.

35

S037-101556

BOLT

Bolt With Washer

1шт.
