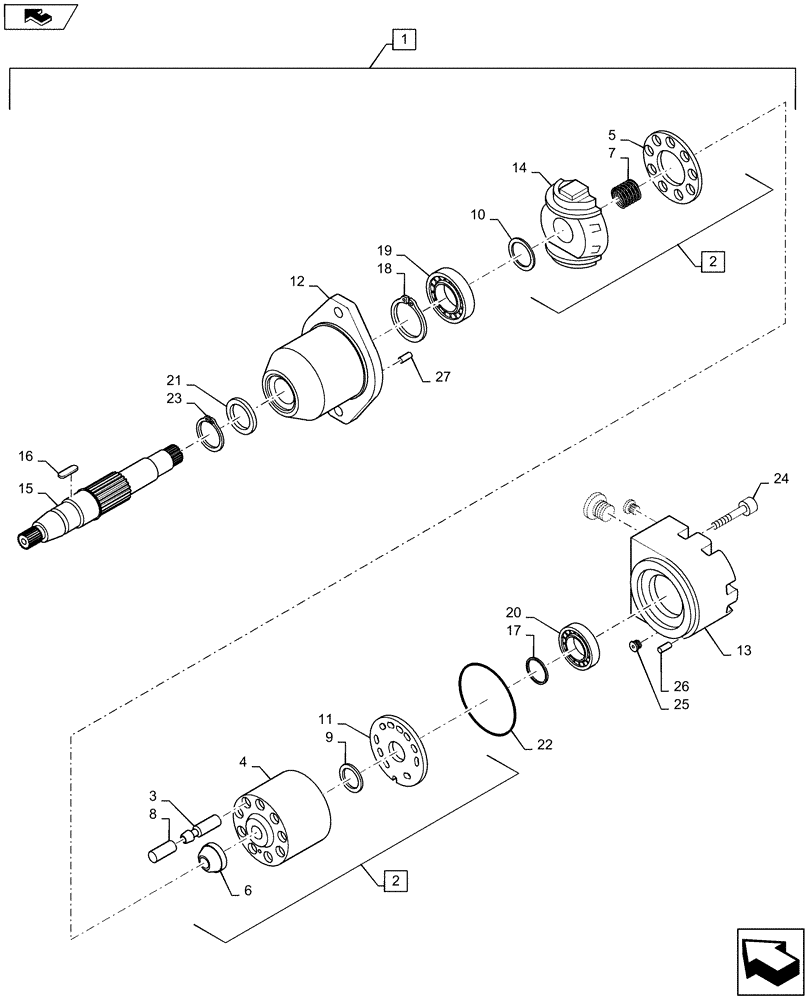

Запчасти Case 1221F (35.752.AC) - FAN, MOTOR (35) - HYDRAULIC SYSTEMS

1

ZGBP-00269

PISTON

Incl 2 - 27

1шт.

1

ZGBP-00269R

REMAN-HYD MOTOR

1221F WHEEL LOADER - TIER 4 (NA) (8/13-)

1шт.

1

ZGBP-00269C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

ZGBP-00270

FAN

Incl 3 - 11, 14

1шт.

3

ZGBP-00288

PISTON

9шт.

4

ZGBP-00289

HYDRAULIC CYLINDER

1шт.

5

ZGBP-00290

PLATE

Retaining Plate

1шт.

6

ZGBP-00291

BALL

Retaining Plate

1шт.

7

ZGBP-00292

SPRING

1шт.

8

ZGBP-00293

PIN

Pressure Pin

3шт.

9

ZGBP-00294

RING

V-Ring

1шт.

10

ZGBP-00295

PLATE

Back-up Plate

1шт.

11

ZGBP-00287

PLATE

Control Plate

1шт.

12

ZGBP-00271

HOUSING

1шт.

13

ZGBP-00272

PLATE

Port Plate

1шт.

14

ZGBP-00273

PLATE

Cam Plate

1шт.

15

ZGBP-00274

DRIVE SHAFT

1шт.

16

ZGBP-00275

KEY

Shaft Key

1шт.

17

ZGBP-00276

SHIM

Adjustable Shim

1шт.

18

ZGBP-00277

RING

Stop Ring

1шт.

19

ZGBP-00278

TAPERED BEARING

1шт.

20

ZGBP-00279

TAPERED BEARING

1шт.

21

ZGBP-00280

SEALING RING

Shaft Seal ring

1шт.

22

ZGBP-00281

O-RING

1шт.

23

ZGBP-00282

RING

Retaining Ring

1шт.

24

ZGBP-00283

SCREW

4шт.

25

ZGBP-00284

SCREW

1шт.

26

ZGBP-00032

PIN

Cylinder Pin

1шт.

27

ZGBP-00285

PIN

Cylinder Pin

2шт.
