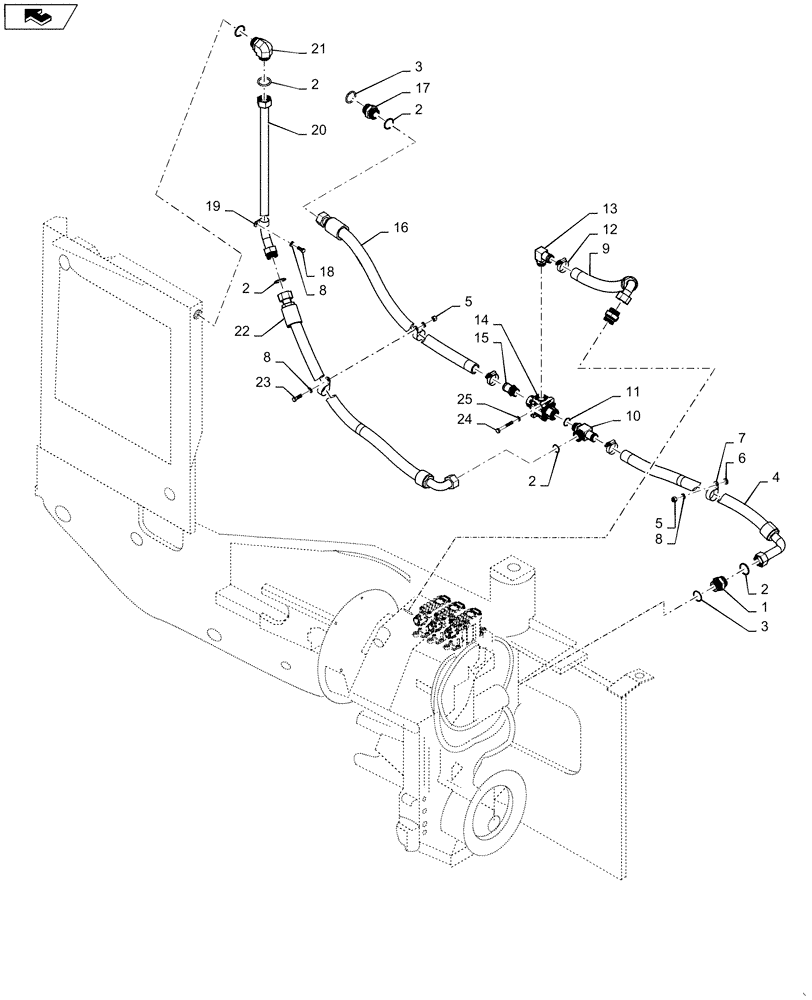

Запчасти Case 1121F (21.116.02) - TRANSMISSION COOLER LINES 4 SPEED WITH BYPASS (21) - TRANSMISSION

1

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Incl. Ref. 2, 3

2шт.

2

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

5шт.

3

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

4шт.

4

84332225

HOSE ASSY.

Valve To Transmission

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

7

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

3шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

9

84338442

HOSE ASSY.

Transmission To Valve

1шт.

10

84330430

TEE,1-11/16" - 12 ORFS x 1-5/16" - 12 ORB x 1-1/4" Hose Barb

Incl. Ref. 2, 11

1шт.

11

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque, Hose

3шт.

13

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

14

84138750

VALVE

Bypass

1шт.

15

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

16

84332227

HOSE

Valve To Cooler

1шт.

17

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Ref. 2, 3

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

19

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

20

84332228

TUBE

Transmission Cooling

1шт.

21

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Ref. 2, 3

1шт.

22

84332226

HOSE

Cooler To Valve

1шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

24

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

25

892-11008

LOCK WASHER,8mm ID

2шт.
