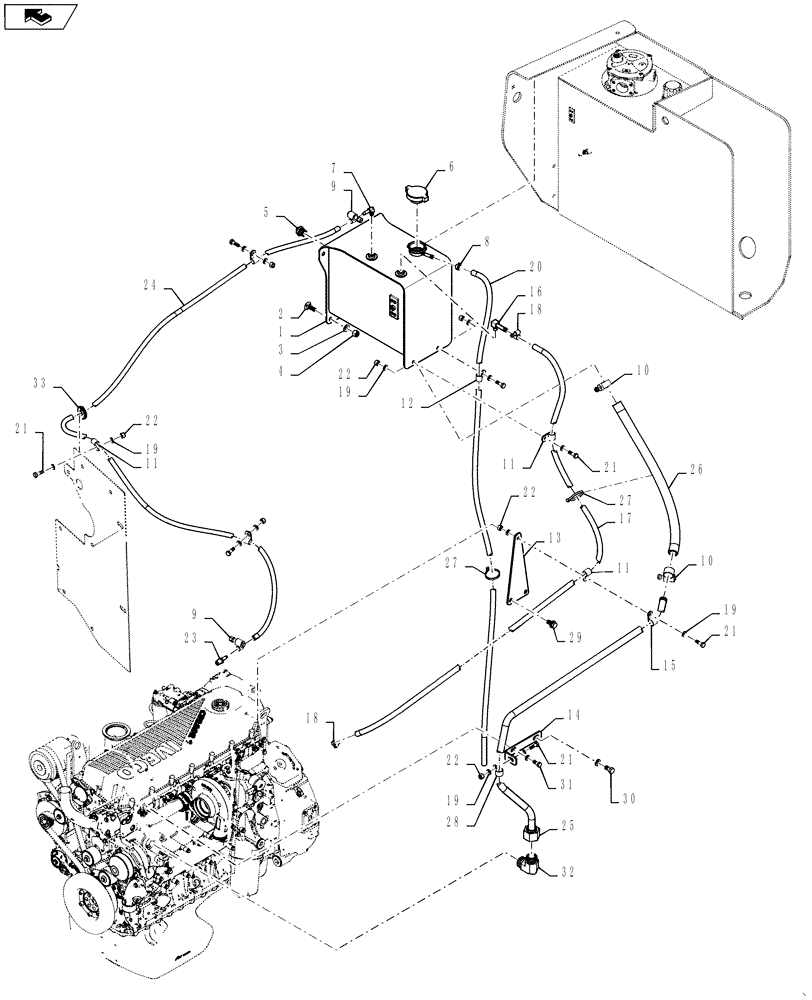

Запчасти Case 1121F (10.400.03) - SURGE TANK (10) - ENGINE

1

84518328

TANK

Surge Tank

1шт.

2

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

5

406721A1

GAUGE

Sight

1шт.

6

A170241

RADIATOR CAP

1шт.

7

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

8

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

10

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

11

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

5шт.

12

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

13

84290460

BRACKET, SUPPORTING

Tube and Hose

1шт.

14

84290461

BRACKET, SUPPORTING

Tube

1шт.

15

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

16

87584286

ELBOW,3/8" Hose Barb x 1/8" NPTF

1шт.

17

31-3123

HOSE, BULK

HOSE, METERS Engine Vent

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

19

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

20

87368234

HOSE,7.90 mm ID x 1210.00 mm

1шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

23

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

1шт.

24

84290467

HOSE, BULK

HOSE, METERS Radiator Vent

1шт.

25

84290463

RIGID TUBE

1шт.

26

84290464

HOSE

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

28

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

29

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

31

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

32

84559342

90 ELBOW

Also Order 34

1шт.

33

248-2344

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
