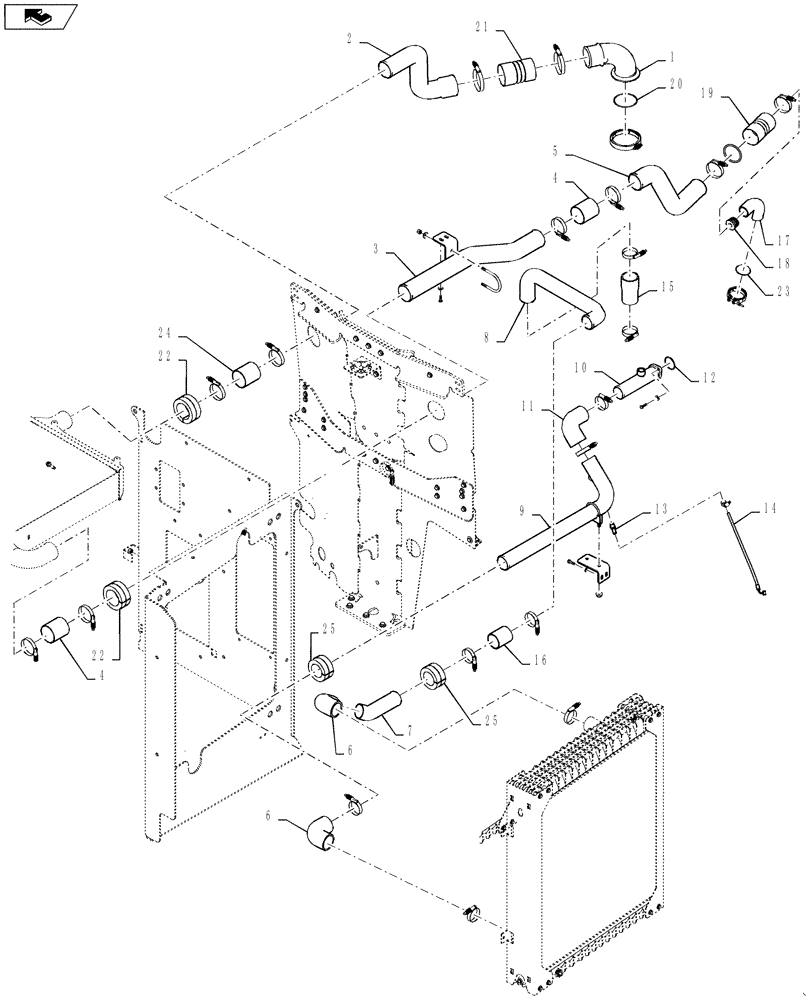

Запчасти Case 1121F (10.400.01) - ENGINE COOLING PLUMBING (10) - ENGINE

1

84223171

ELBOW

1шт.

2

84308070

TUBE

1шт.

3

84308066

TUBE

1шт.

4

87572375

HOSE,76.2mm ID x 89mm L

2шт.

5

84328936

TUBE

1шт.

6

84308072

ELBOW,63.5mm ID x 199.62mm L, SAE J20R4 Class D1

2шт.

7

84411016

RIGID TUBE

1шт.

8

84308080

TUBE

1шт.

9

84401000

RIGID TUBE

1шт.

10

84313055

TUBE

1шт.

11

84313058

ELBOW,57.2mm ID x 200mm L, SAE J20R4, Class D1

1шт.

12

238-6227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 6, 90 Duro

1шт.

13

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

14

84331746

HOSE

1шт.

15

87437994

RADIATOR HOSE,57.20 mm ID, 63.50 mm ID x 125.00 mm, SAE 20R4 CLASS D1

1шт.

16

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

1шт.

17

J918685

PIPE

1шт.

18

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

19

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

1шт.

20

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

21

84313060

HOSE

1шт.

22

8500167

SEAL

2шт.

23

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

24

87572378

HOSE

1шт.

25

84342730

SEAL

2шт.
