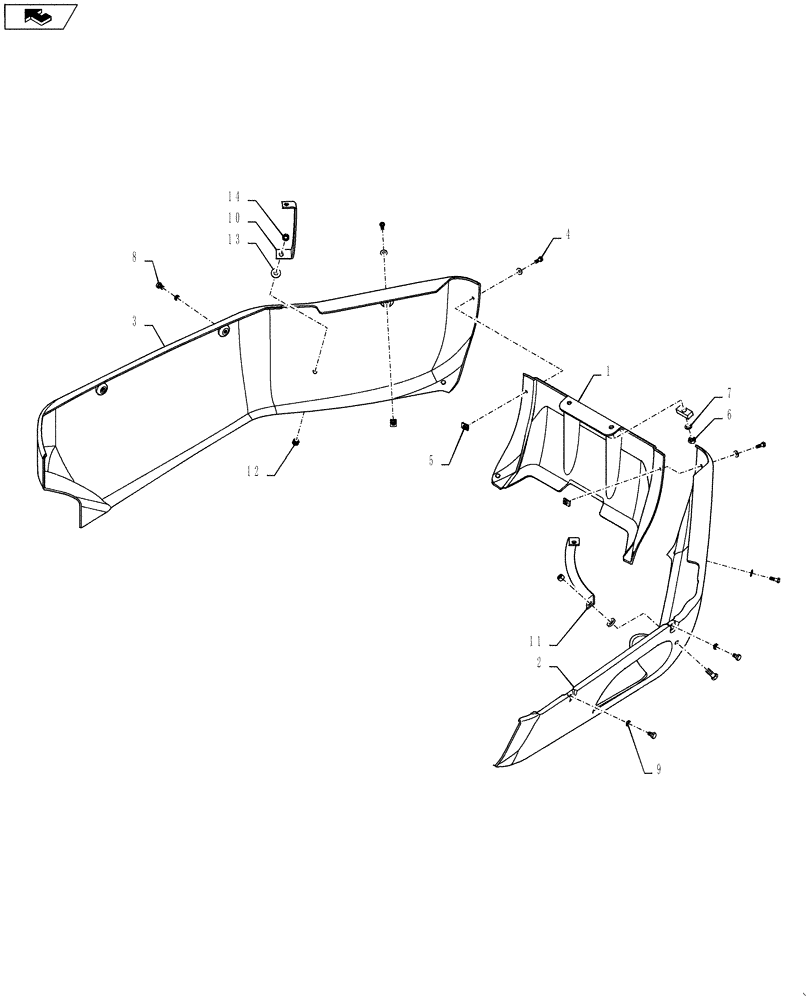

Запчасти Case 1121F (90.600.01) - CAB AND CANOPY SKIRT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84473646

SKIRT

Front

1шт.

2

84357739

SKIRT

Right Hand

1шт.

3

84357741

SKIRT

Left Hand

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

5

833-40408

NUT,M8, U

6шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

4шт.

9

432444A1

SPACER

Retainer

4шт.

10

84473555

BRACKET

1шт.

11

84473552

BRACKET

1шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

13

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

2шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.
