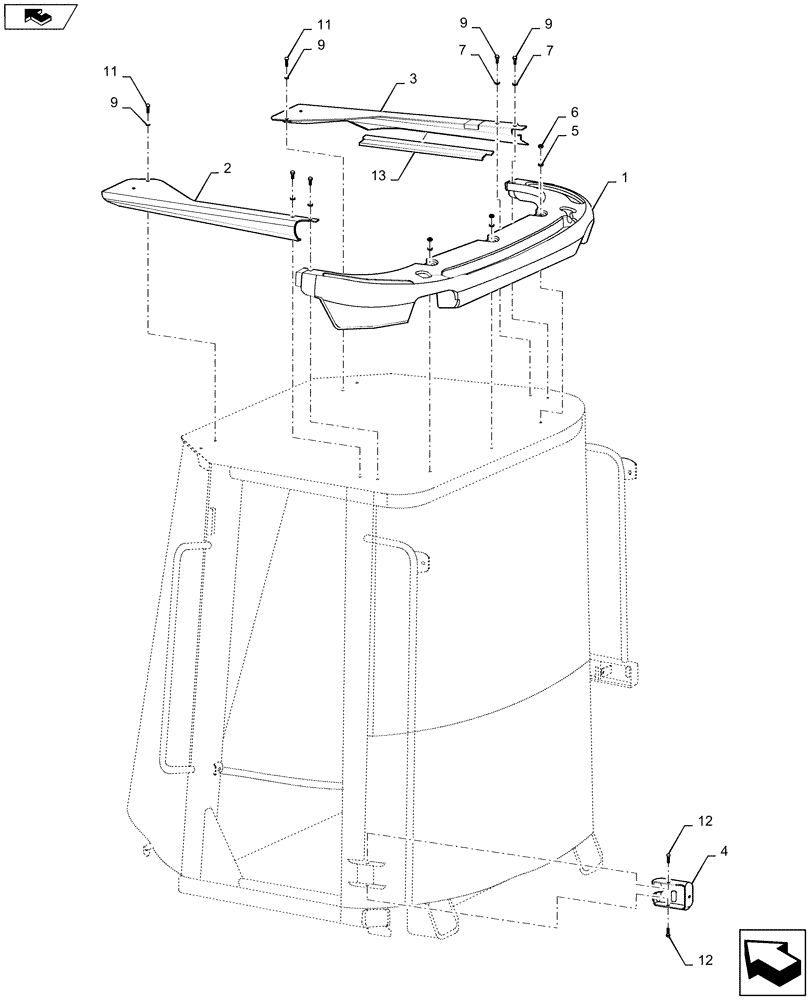

Запчасти Case 1121F (90.160.05) - CAB - EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76303024

DOOR SILL MOULDING

Rear

1шт.

2

84278747

MOLDING

Left Front

1шт.

3

84278746

MOLDING

Right Front

1шт.

4

87493705

COVER

Door Latch

1шт.

5

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

M11 x 20 x 2

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

M9 x 24 x 2

4шт.

8

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

9

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6.6 x 12 x 1.6

2шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

11

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

3шт.

12

87720305

MOLDING

Cut 480 mm (18 - 29/32 in) From Bulk Molding 26-258

2шт.
