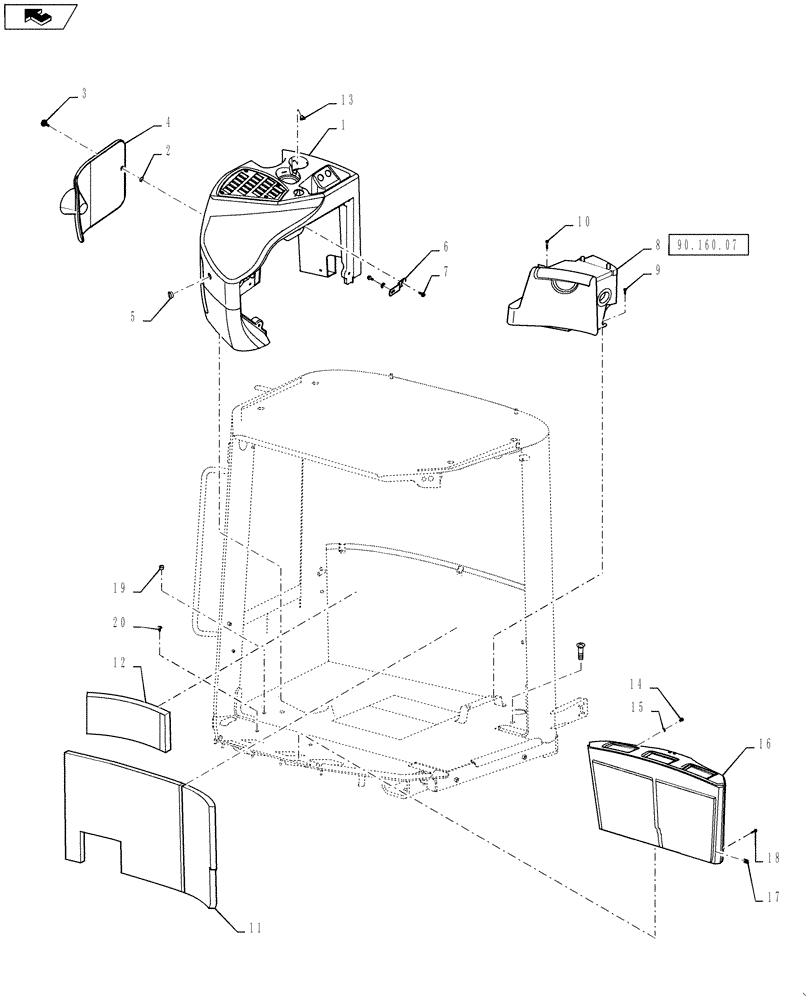

Запчасти Case 1121F (90.160.04[01]) - CAB- INTERIOR TRIM - CONSOLES - HVT ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84327252

TRIM

Console RH

1шт.

2

87610851

LOCK NUT,M6 x 17mm OD

M6 Push Retainer

2шт.

3

422721300

BOLT

Knob; 6x16

2шт.

4

84331004

DOOR

Console RH

1шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

6

84394612

BRACKET

1шт.

7

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

2шт.

8

76303013

BOX

Cool; See Figure

1шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

1шт.

10

13276924

SCREW,Pozidriv Pan Hd, M6 x 35mm, Cl 8.8, Full Thd

2шт.

11

87667053

TRIM PANEL

1шт.

12

87667054

TRIM PANEL

1шт.

13

84480438

RUBBER PAD

8шт.

14

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

16

76303040

CONSOLE

1шт.

17

833-40306

SPRING NUT,M6, U

2шт.

18

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

19

353-404

PLUG,Dome, .500" hole, Nylon

4шт.

20

369929A1

FASTENER

2шт.
