(90.160.03[01]) - CAB - INTERIOR TRIM - CONSOLES - TC ONLY

Запчасти Case 1121F (90.160.03[01]) - CAB - INTERIOR TRIM - CONSOLES - TC ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

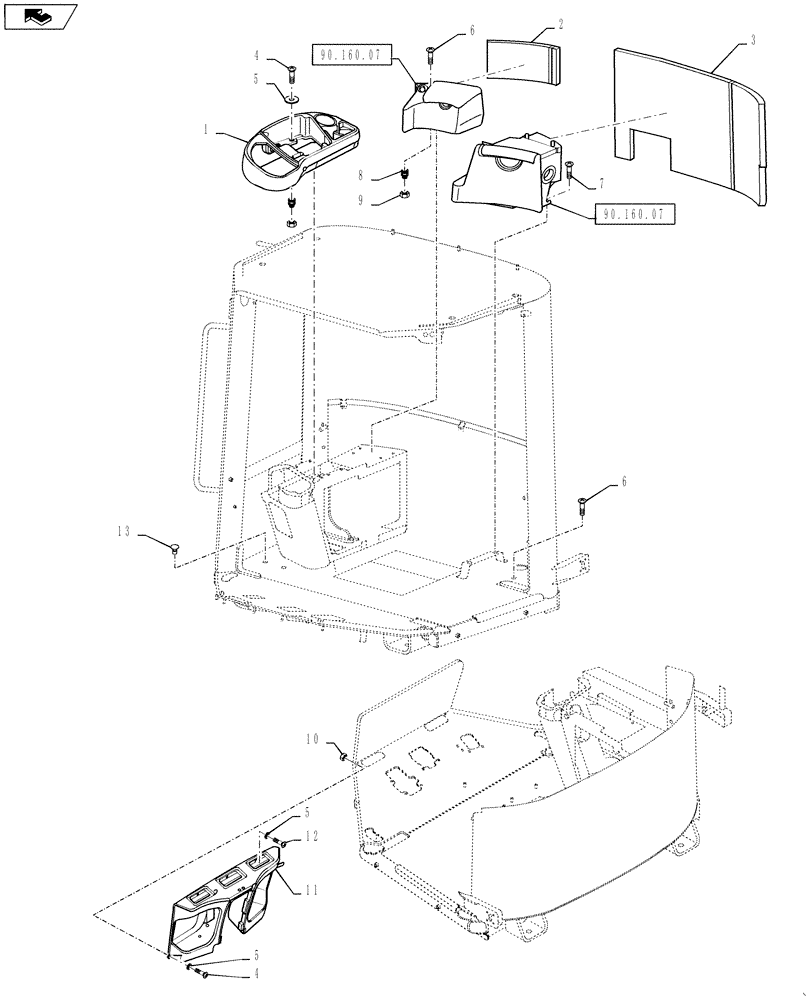

Схема запчастей Case 1121F - (90.160.03[01]) - CAB - INTERIOR TRIM - CONSOLES - TC ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
home
90.160.07
8
6
9
13
11
12
4
90.160.07
3
5
5
10
1
6
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76303033

CONSOLE

RH

1шт.

2

87667054

TRIM PANEL

Rear

1шт.

3

87667053

TRIM PANEL

Rear

1шт.

4

86511832

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

8шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

6

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

5шт.

7

13276924

SCREW,Pozidriv Pan Hd, M6 x 35mm, Cl 8.8, Full Thd

2шт.

8

404287A1

INSERT,M6

M6

10шт.

9

86013769

NUT

Threaded Insert, M6, Open

6шт.

10

833-40306

SPRING NUT,M6, U

2шт.

11

76303040

CONSOLE

Front

1шт.

12

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

13

353-404

PLUG,Dome, .500" hole, Nylon

5шт.
