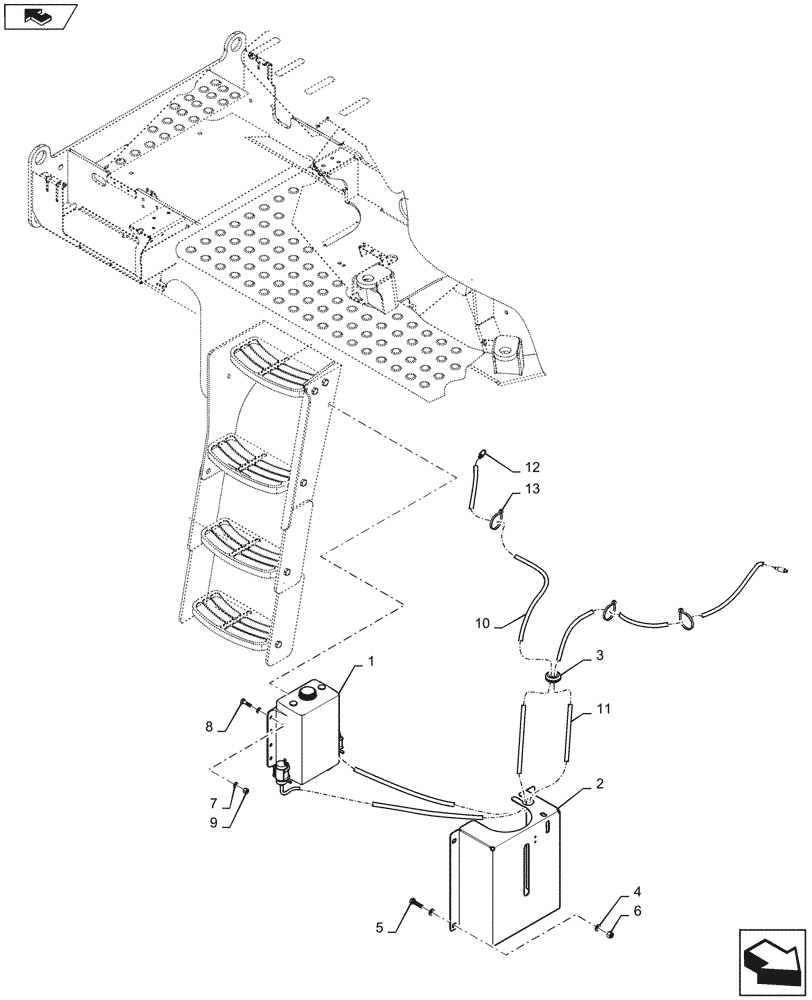

Запчасти Case 1121F (90.150.07) - WASHER BOTTLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

236781A1

CONTAINER

Incl Pumps and Cap

1шт.

1

87439461

CAP

1шт.

1

48042633

PUMP,24V

2шт.

2

84409410

PROTECTIVE COVER

1шт.

3

87379691

GROMMET

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

371846A1

HOSE

Bulk 82"

1шт.

11

84290935

HOSE

Bulk 70"

1шт.

12

84037530

VALVE

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.
