Запчасти Case 1121F (90.119.02) - HOOD PANEL WHEEL WELL FULL (90) - PLATFORM, CAB, BODYWORK AND DECALS

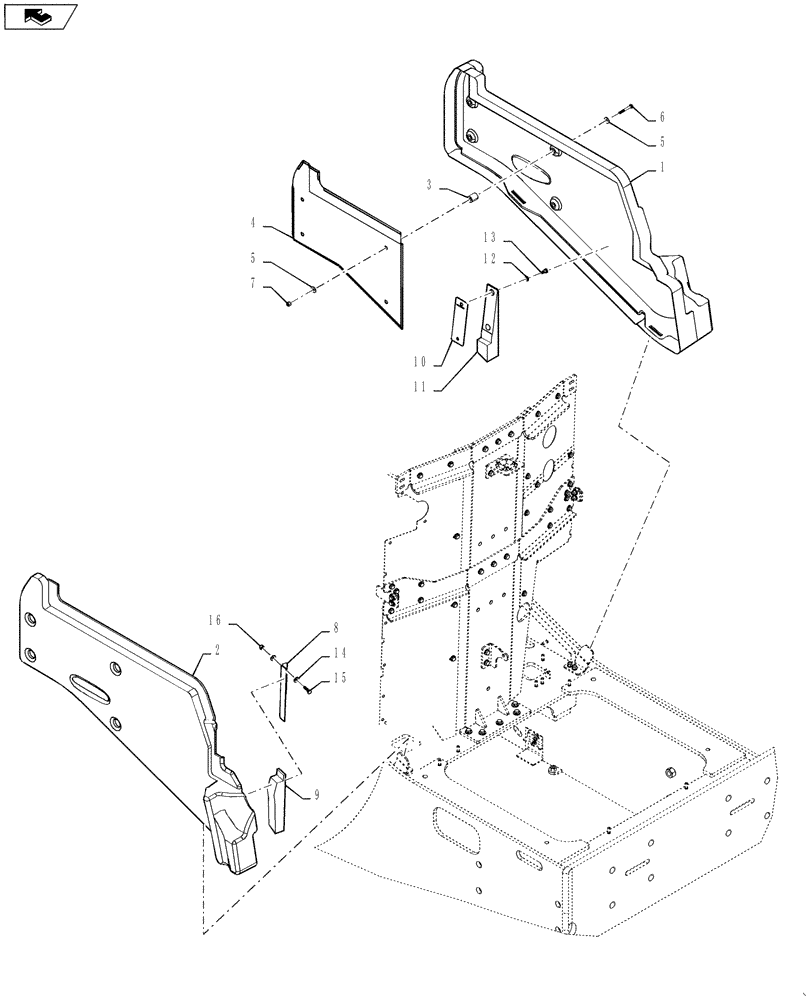

Схема запчастей Case 1121F - (90.119.02) - HOOD PANEL WHEEL WELL FULL (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
14
11
15
6
home
5
1
5
8
12
4
9
10
3
2
16
13

Артикул

Название

Примечание

Количество

1

84338622

PANEL

Right Hand

1шт.

2

84338626

PANEL

Left Hand

1шт.

3

84382825

SPACER,9.5mm ID x 19mm OD x 23mm L

Spacer Shield

4шт.

4

84382826

HEAT SHIELD

Full Fender

1шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

6

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

4шт.

7

832-10406

NUT,M6 x 1, Cl 8

6шт.

8

84409475

BRACKET, SUPPORTING

Firewall

1шт.

9

84411978

FOAM

1шт.

10

84411981

RETAINING PLATE

1шт.

11

84411979

FOAM

Lower Air

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

84426380

LATCH

Full Wheel Well LH CNH Black

1шт.

18

84426381

LATCH

Full Wheel Well RH CNH Black

1шт.

19

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

1/8 Pipe

2шт.

20

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 20
