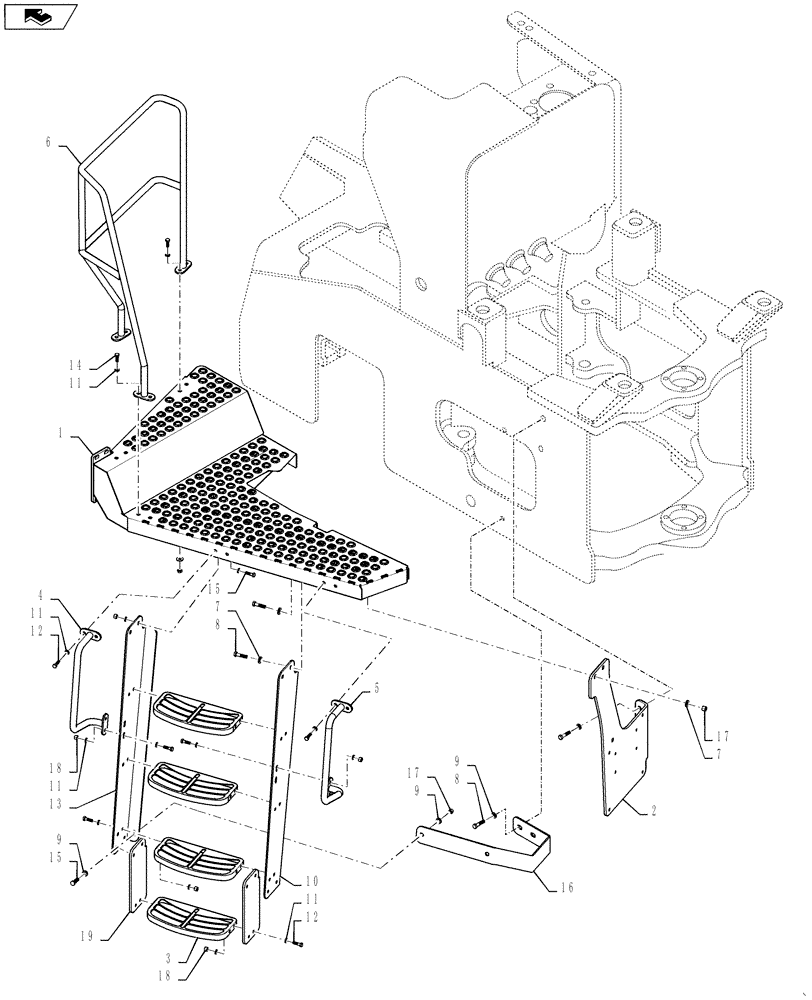

Запчасти Case 1121F (90.118.02) - STEPS, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84374007

PLATFORM

RH

1шт.

2

84346094

SUPPORT

Brace; Platform RH Front

1шт.

3

87434472

STEP

4шт.

4

84374029

HANDLE

RH Grab

1шт.

5

84374026

GRAB RAIL

RH

1шт.

6

84374023

GRAB RAIL

RH Platform

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

10

84374033

SUPPORT

LH Steps Rear

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

62шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

28шт.

13

84374056

SUPPORT

LH Steps Front

1шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

16

84346097

BRACKET

LH Steps Brace

1шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

28шт.

19

84473299

STRAP

Lower Entry

2шт.
