Запчасти Case 1121F (90.116.03[02]) - REAR FENDER LEFT SIDE WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

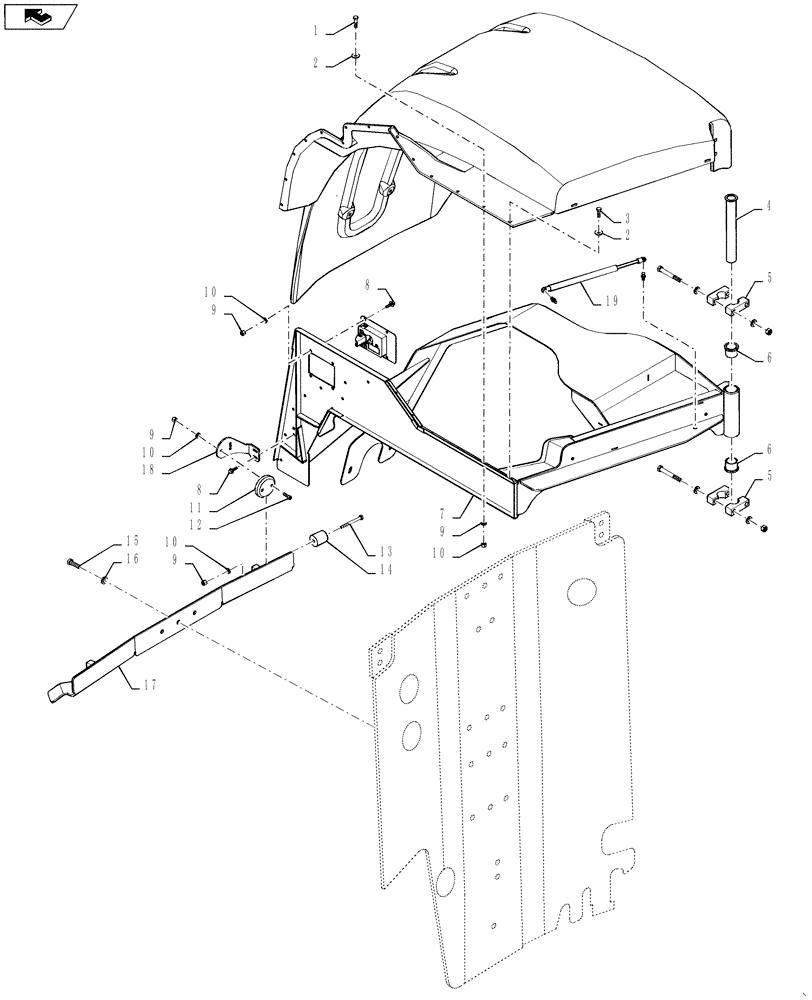

Схема запчастей Case 1121F - (90.116.03[02]) - REAR FENDER LEFT SIDE WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
9
home
9
10
17
2
19
8
14
18
5
13
6
10
5
15
3
1
6
7
9
8
12
9
4
11
10
16
2

Артикул

Название

Примечание

Количество

1

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

16шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

17шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

4

84357755

PIN

1шт.

5

87394321

MOUNTING PARTS

Platform Rail

2шт.

6

87534510

FLANGED BEARING,32.17 mm ID x 44.5 mm OD x 31.8 mm

Bearing

3шт.

7

84333720

FRAME

Fender LH

2шт.

8

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

9

832-10406

NUT,M6 x 1, Cl 8

21шт.

10

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

21шт.

11

84351079

BUMPER

Engine Door

1шт.

12

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

13

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

14

L126483

BUMPER

Rubber

1шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

17

84351074

BRACKET, SUPPORTING

Firewall Door

1шт.

18

84351077

BRACKET, SUPPORTING

Door Bumper LH

1шт.

19

L129243

GAS STRUT,498mm Extended, 321mm Compressed

Spring Gas

1шт.

Выбрано товаров: 19
