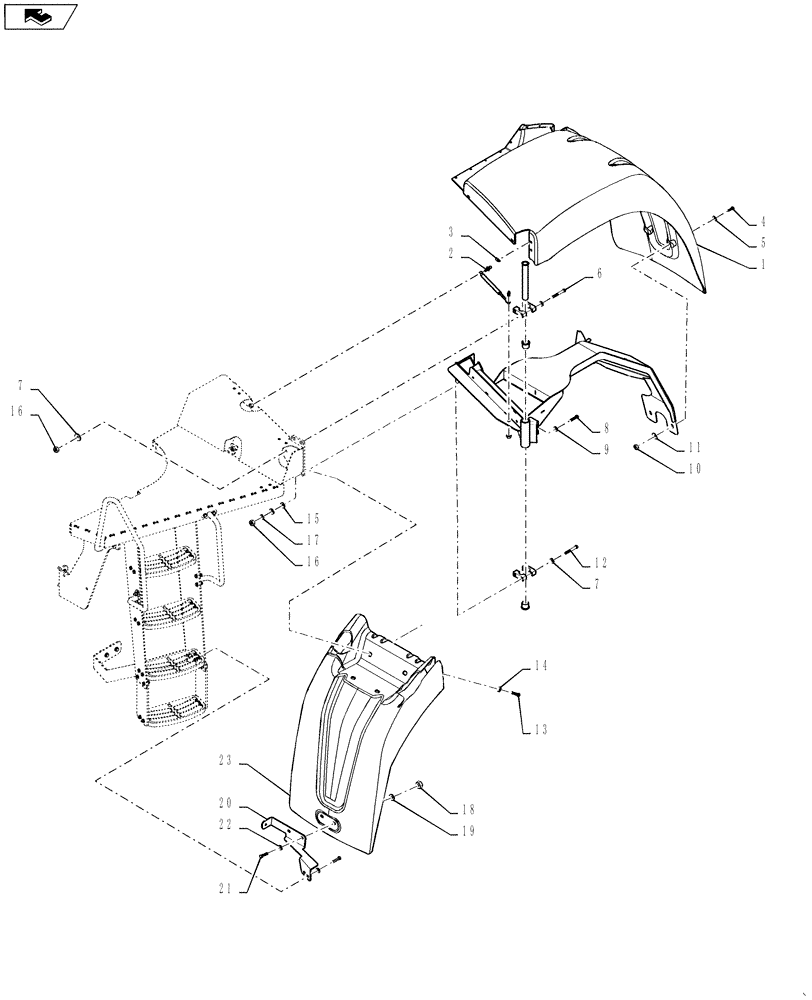

Запчасти Case 1121F (90.116.03[01]) - REAR FENDER LEFT SIDE WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87552918

FENDER

LH

1шт.

2

86013811

STUD

Ball

2шт.

3

404882A1

SPRING NUT,M6

M6 Spring

2шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

6

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

8

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

14

895-25012

WASHER,M12 x 37 x 3

4шт.

15

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

4шт.

16

829-1412

NUT,M12, Cl 10.9

4шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

20

84490877

BRACKET

Mid Fender LH

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

23

84370338

FENDER

Mid LH

1шт.
