Запчасти Case 1121F (90.116.02) - REAR FENDER - STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

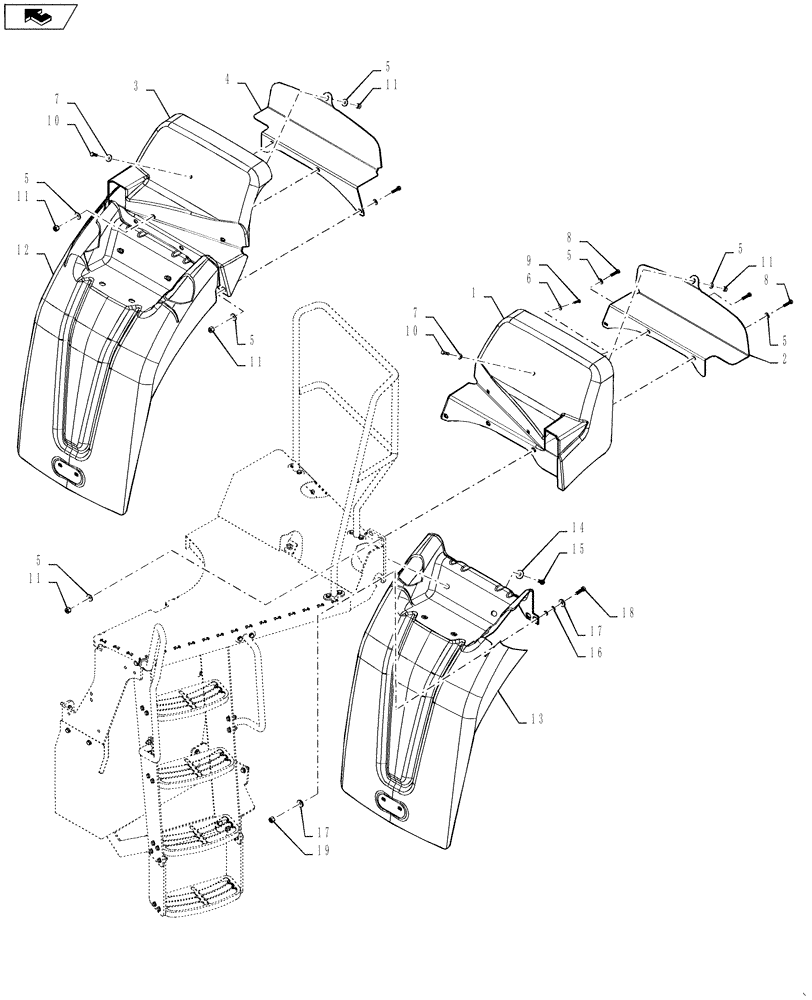

Схема запчастей Case 1121F - (90.116.02) - REAR FENDER - STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
5
3
home
11
10
11
17
5
8
10
8
15
5
9
12
17
5
5
13
19
4
5
1
18
6
11
11
5
7
2
11
14
7

Артикул

Название

Примечание

Количество

1

84346099

REAR FENDER

Left Hand

1шт.

2

87597180

BRACKET

Left Hand

1шт.

3

84346100

REAR FENDER

Right Hand

1шт.

4

87597181

BRACKET

Right Hand

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

14шт.

6

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

6шт.

8

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Left Hand

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

12

84370337

FENDER

1шт.

13

84370338

FENDER

1шт.

14

895-25012

WASHER,M12 x 37 x 3

8шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Right Hand

8шт.

16

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

Left Hand

8шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

Right Hand

8шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

19

829-1412

NUT,M12, Cl 10.9

4шт.

Выбрано товаров: 19
