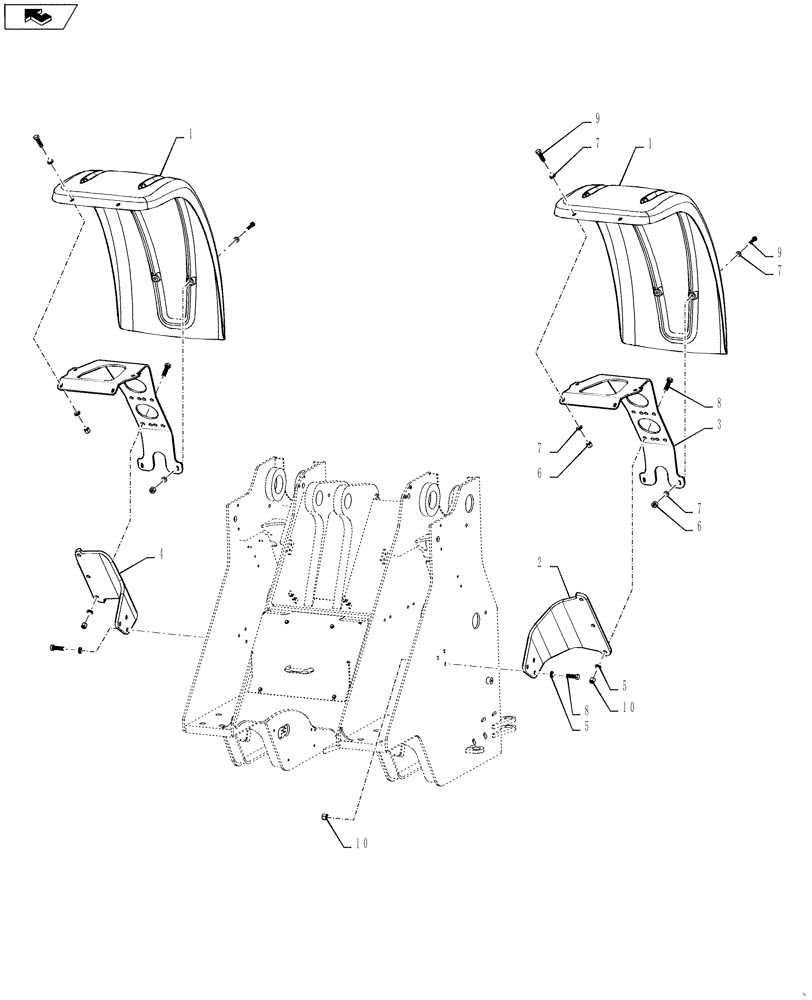

Запчасти Case 1121F (90.116.01) - FRONT FENDER STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87610930

FRONT FENDER

2шт.

2

87576296

BRACKET

Fender LH

1шт.

3

87676688

BRACKET

Fender

2шт.

4

87576297

BRACKET

Fender RH

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

8

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

9

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

12шт.

10

832-10416

NUT,M16 x 2, Cl 8

12шт.
