Запчасти Case 1121F (90.108.09) - DECALS - COMMON LANGUAGE, EUROPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

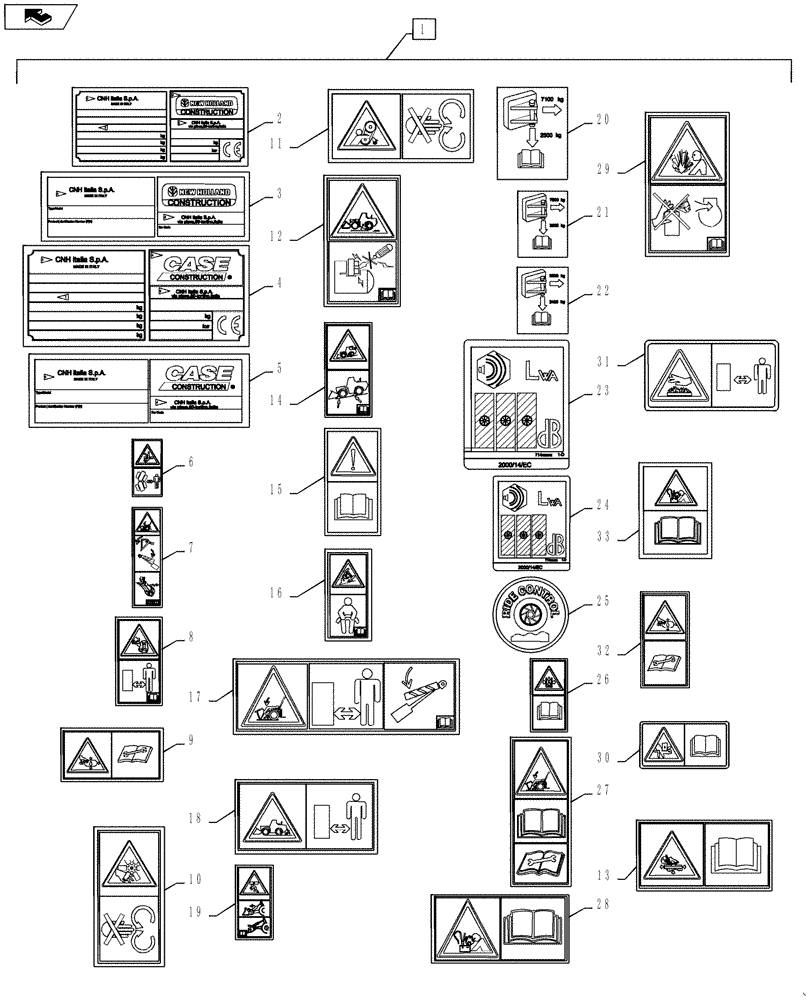

Схема запчастей Case 1121F - (90.108.09) - DECALS - COMMON LANGUAGE, EUROPE (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
1
8
12
2
home
16
4
7
33
17
19
26
21
5
10
30
32
24
29
9
23
13
31
28
22
18
25
15
11
6
20
27
3

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Decal, Factory Common Language, Europe

1шт.

2

NSS

NOT SOLD SEPARAT

Product I.D. Number NH

1шт.

3

NSS

NOT SOLD SEPARAT

Product I.D. Number NH

1шт.

4

NSS

NOT SOLD SEPARAT

Product I.D. Number Case

1шт.

5

NSS

NOT SOLD SEPARAT

Product I.D. Number Case

1шт.

6

323695A1

DECAL

Crush Hazard

2шт.

7

87546236

DECAL

Lift Arm Support

1шт.

8

329048A1

DECAL

Caution Trans/Serv

1шт.

9

328903A1

DECAL

Fluid Under Pressure

2шт.

10

87488609

DECAL

Fan Warning

3шт.

11

388113A1

DECAL

Belt Entanglement Hazard

1шт.

12

87488619

DECAL

Danger Starting

1шт.

13

329045A1

CAUTION DECAL

Fluid Under Pressure

1шт.

14

329050A1

DECAL

Caution Block Wheels

1шт.

15

256147A1

DECAL

General Warning

1шт.

16

386241A1

WARNING DECAL

Do Not Jump

1шт.

17

412426A1

DECAL

Danger Crush Hazard

1шт.

18

328753A1

DECAL

Warning Hazard

1шт.

19

364917A1

DECAL

Attachment Test

1шт.

20

408368A1

DECAL

Hitch Weight

1шт.

21

251501A1

DECAL

Hitch Weight

1шт.

22

251502A1

DECAL

Hitch Weight

1шт.

23

71477096

DATA PLAQUE,104dB, 90mm x 110mm

Sound Level (104 dB)

1шт.

24

71477097

DECAL,105dB, 90mm x 110mm

Sound Level (105 dB)

1шт.

25

304083A1

DECAL

Ride Control

1шт.

26

333269A1

DECAL

Pressurized System Hazard

3шт.

27

87453136

DECAL

Danger Crush Hazard

1шт.

28

412476A1

DECAL

Danger Explosion Hazard

1шт.

29

8603095

WARNING DECAL

Warning Ether Explosion

1шт.

30

76045543

DECAL

Warning Cut Area

4шт.

31

76045547

DECAL

Warning Hot Area

2шт.

32

87597330

DECAL

Fluid Under Pressure

1шт.

33

84404565

IMPORTANT DECAL

Danger Explosion Hazard

1шт.

Выбрано товаров: 33
