Запчасти Case 1121F (90.108.04) - DECALS - SPANISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

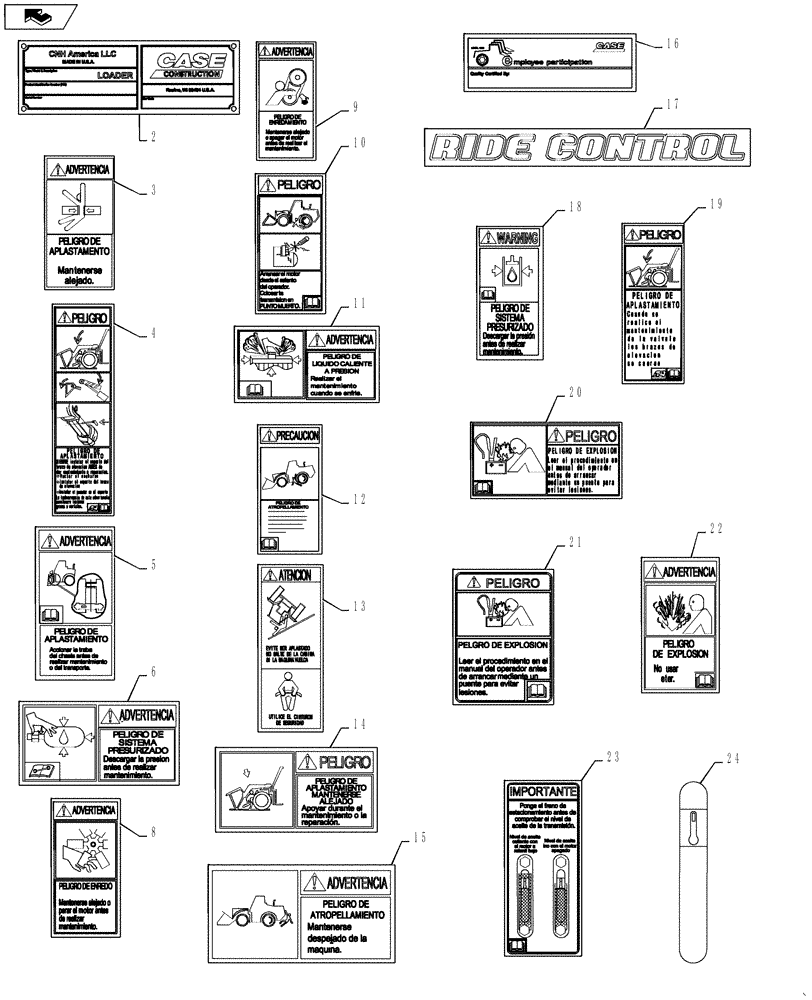

Схема запчастей Case 1121F - (90.108.04) - DECALS - SPANISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
14
13
home
6
21
9
10
8
17
22
20
23
15
5
12
24
2
16
19
4
11
18

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1021F/1121F Spanish; Not Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Product I.D. Number

1шт.

3

334576A1

DECAL

Crush Hazard

2шт.

4

87642055

DECAL

Lift Arm Support

1шт.

5

334573A1

DECAL

Caution Trans/Serv

1шт.

6

334015A1

DECAL

Fluid Under Pressure

2шт.

7

R44602

RIVET

Serial Number Plate; Not Shown

4шт.

8

87488608

DECAL

Fan Warning

2шт.

9

87585331

DECAL

Belt Entanglement Hazard

2шт.

10

87488618

DECAL

Danger Starting

1шт.

11

334664A1

DECAL

Fluid Under Pressure

1шт.

12

334704A1

DECAL

Caution Block Wheels

1шт.

13

124271A1

DECAL

Do Not Jump

1шт.

14

334677A1

DECAL

Danger Crush Hazard

1шт.

15

334688A1

DECAL

Warning Hazard

1шт.

16

NSS

NOT SOLD SEPARAT

Quality

1шт.

17

84493112

DECAL

Ride Control

1шт.

18

336011A1

DECAL

Pressurized System Hazard

3шт.

19

87453134

DECAL

Danger Crush Hazard

1шт.

20

412474A1

DECAL

Danger Explosion Hazard

2шт.

21

8603094

WARNING DECAL

Warning Ether Explosion

1шт.

22

84404561

DANGER DECAL

Danger Explosion Hazard

1шт.

23

84359744

IMPORTANT DECAL

Important - Trans Fluid Level

1шт.

24

84343796

DECAL

Transmission Fluid Level Guage

1шт.

Выбрано товаров: 24
