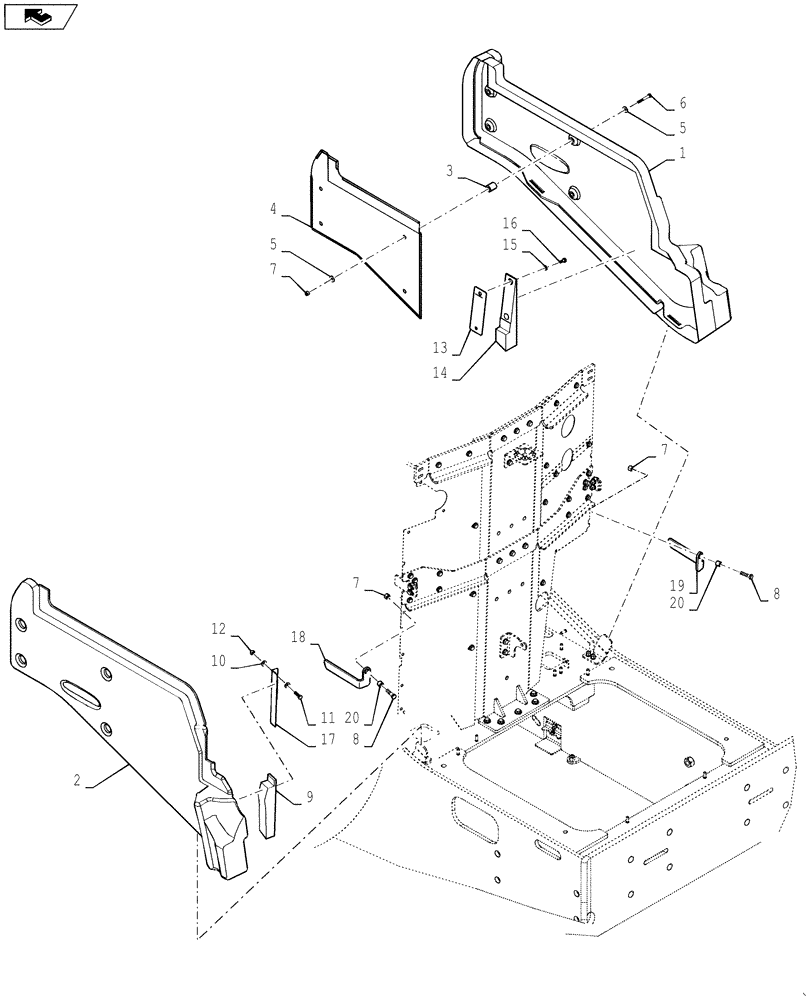

Запчасти Case 1121F (90.105.03) - FULL WHEEL WELL PANEL, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84338624

PANEL

Right Hand

1шт.

2

84338628

PANEL

Left Hand

1шт.

3

84382825

SPACER,9.5mm ID x 19mm OD x 23mm L

4шт.

4

84382826

HEAT SHIELD

Full Fender

1шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

6

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

4шт.

7

832-10406

NUT,M6 x 1, Cl 8

6шт.

8

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

9

84411978

FOAM

1шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

84411981

RETAINING PLATE

1шт.

14

84411979

FOAM

Lower

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

17

84409475

BRACKET, SUPPORTING

1шт.

18

84426380

LATCH

Left Hand

1шт.

19

84426381

LATCH

Right Hand

1шт.

20

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

2шт.
