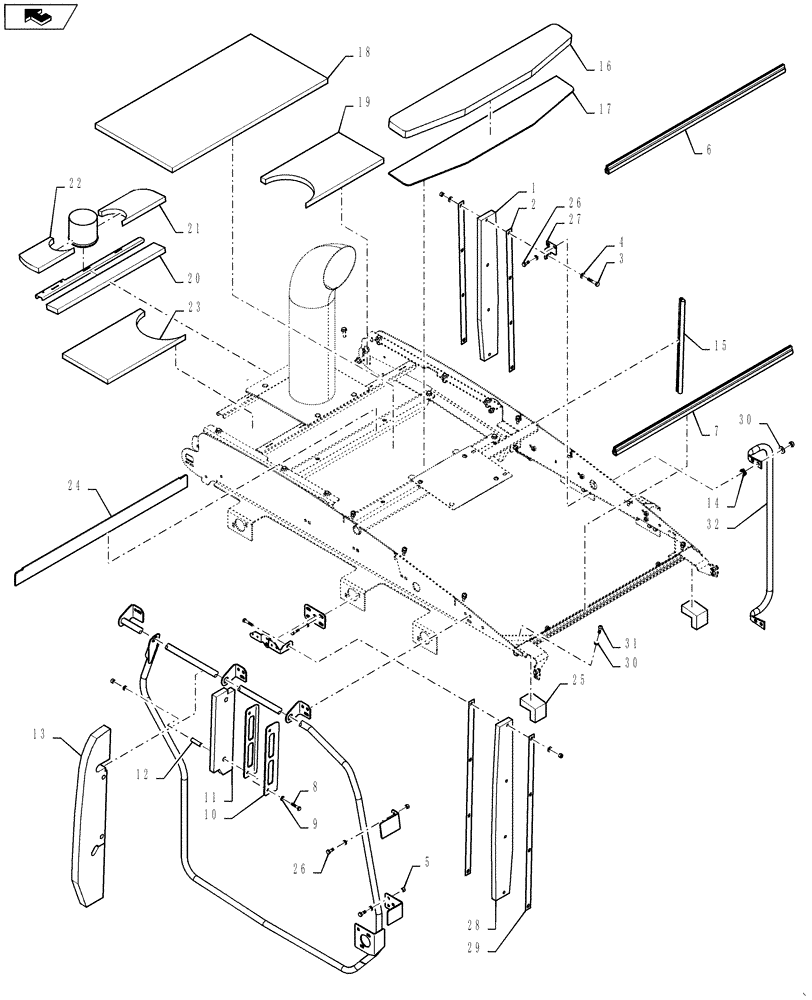

Запчасти Case 1121F (90.105.02[05]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84485905

BAFFLE

1шт.

2

84485678

STRIP

2шт.

3

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

6

84315483

SEAL

2шт.

7

84337110

RUBBER SEAL,1112mm L

1шт.

8

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

16шт.

10

84412018

MOUNTING PLATE

2шт.

11

84409399

RUBBER SEAL

2шт.

12

86013195

TUBE,10.20 mm ID x 15.87 mm OD x 57 mm L

4шт.

13

84409398

RUBBER SEAL

2шт.

14

84327027

GROMMET

4шт.

15

84406320

RUBBER SEAL,500mm L

2шт.

16

84391528

INSULATING PANEL

Top Hood

1шт.

17

84391524

INSULATING PANEL

Top Hood

1шт.

18

84391521

INSULATING PANEL

Top Hood Main

1шт.

19

84391523

INSULATING PANEL

Top Hood Muffler

1шт.

20

84391525

INSULATING PANEL

Top Hood Strip

1шт.

21

84391527

INSULATING PANEL

Top Hood Intake RH

1шт.

22

84391526

INSULATING PANEL

Top Hood Intake LH

1шт.

23

84391522

INSULATING PANEL

Top Hood Muffler LH

1шт.

24

84391529

INSULATING PANEL

Top Hood Verticle

1шт.

25

84402131

INSULATING PANEL

Corner

2шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

27

84474132

BRACKET

1шт.

28

84485904

BAFFLE

1шт.

29

84485677

STRIP

2шт.

30

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

31

84232472

SCREW,BTN HD, M10 x 1.5 x 35mm, Cl 12.9

4шт.

32

84337111

HANDRAIL

2шт.
