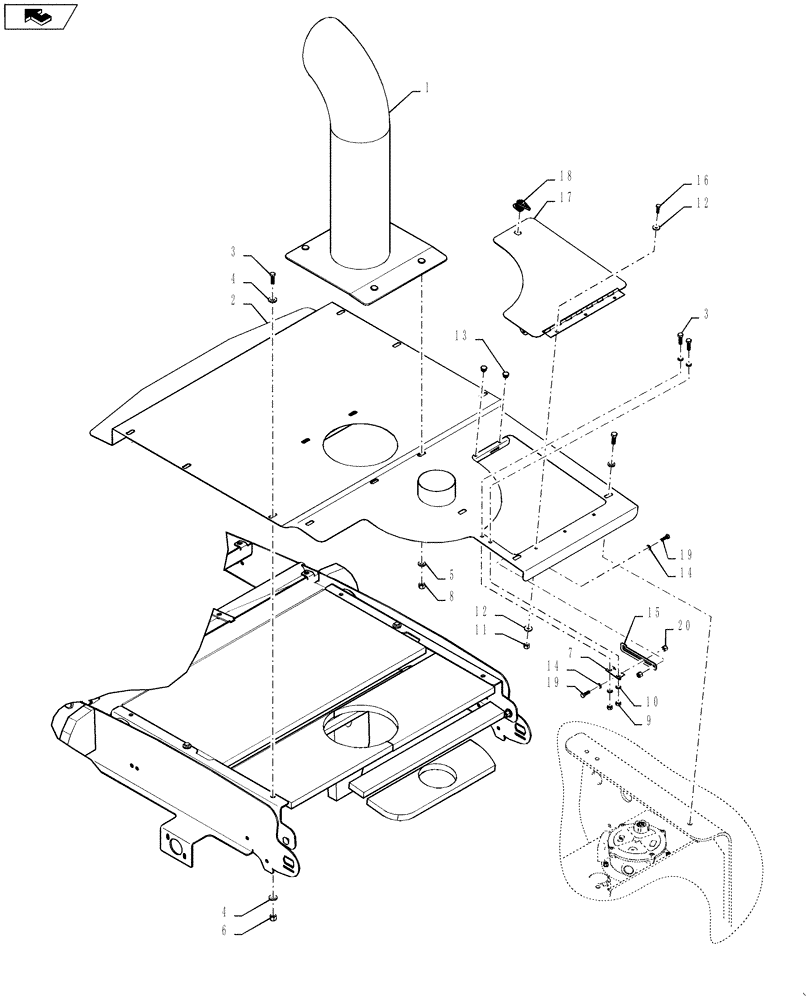

Запчасти Case 1121F (90.105.02[04]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84397961

EXHAUST SYSTEM PIPE

1шт.

2

84385277

ENGINE HOOD

1шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

7

84387246

BRACKET

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

11

832-10406

NUT,M6 x 1, Cl 8

3шт.

12

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6шт.

13

87524552

GROMMET

2шт.

14

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

15

84382992

SLIDER

1шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

17

84385300

COVER ASSY

1шт.

18

8602791

LOCK

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

20

16104121

NUT,M8 x 1.25, Cl 10

2шт.
