Запчасти Case 1121F (90.105.02[02]) - HOOD INSTALLATION LEFT HAND PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

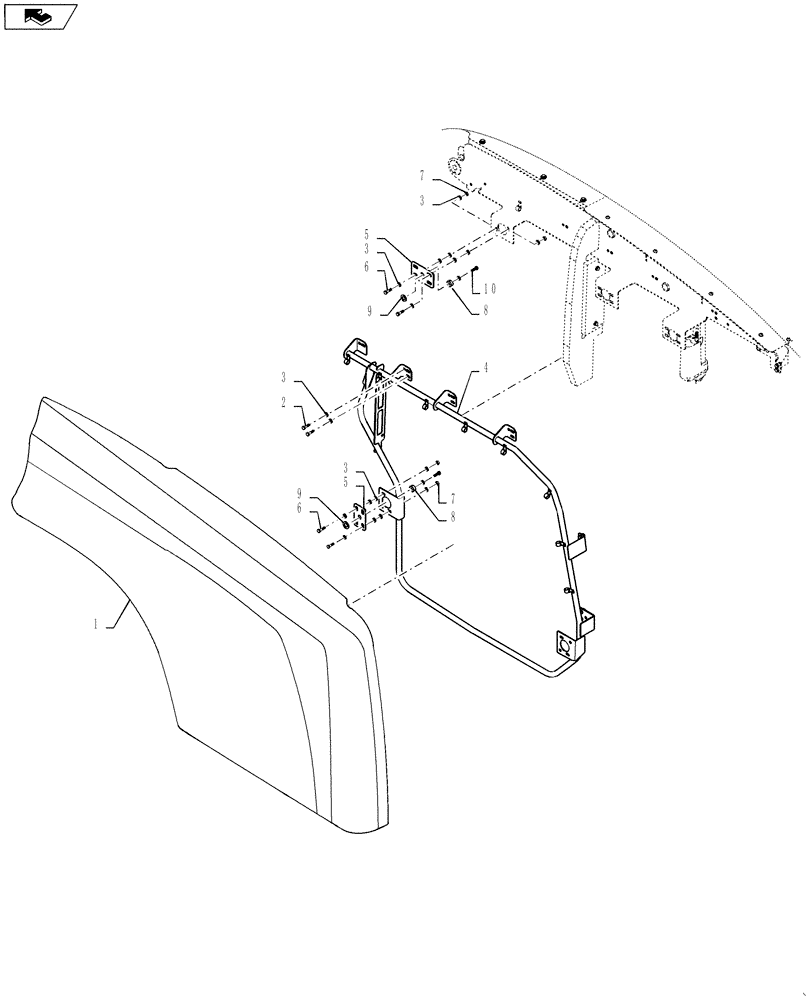

Схема запчастей Case 1121F - (90.105.02[02]) - HOOD INSTALLATION LEFT HAND PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
9
3
6
6
8
8
3
5
home
7
4
9
3
1
3
7
10
2

Артикул

Название

Примечание

Количество

1

84355864

ENGINE HOOD PANEL

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

50шт.

4

84402129

PIPE

1шт.

5

84374069

MOUNTING PLATE

5шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

15шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

8

434177A1

ISOLATOR

5шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

5шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 10
