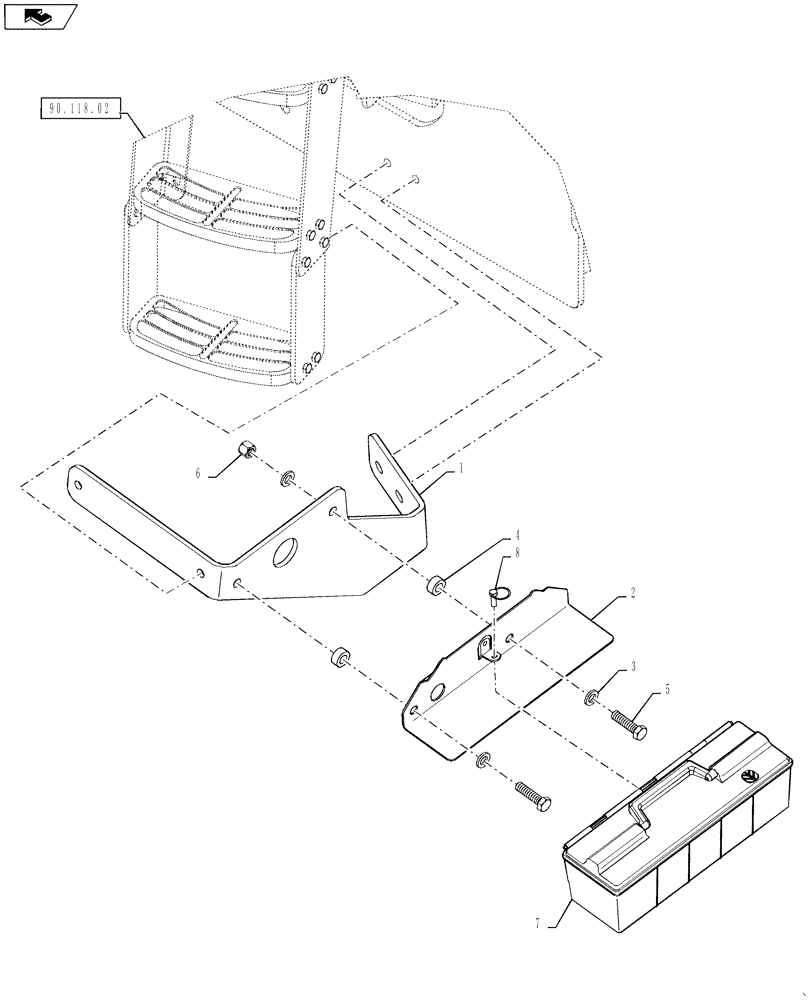

Запчасти Case 1121F (88.100.04) - TOOL BOX INSTALLATION (88) - ACCESSORIES

1

84362154

BRACKET

RH Steps with Tool Box

1шт.

2

86025946

BRACKET

Tool Box

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

2шт.

5

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

6

832-10416

NUT,M16 x 2, Cl 8

2шт.

7

5135060

TOOL BOX

Plastic

1шт.

8

A33497

LINCH PIN,4.76mm OD Pin

1шт.

9

5106675

PIN,6mm OD

1шт.
