(82.100.05) - LOADER BUCKET WITH BOLT ON EDGE,FLAT BOTTOM, 6.54 YD - EUROPE

Запчасти Case 1121F (82.100.05) - LOADER BUCKET WITH BOLT ON EDGE,FLAT BOTTOM, 6.54 YD - EUROPE (82) - FRONT LOADER & BUCKET

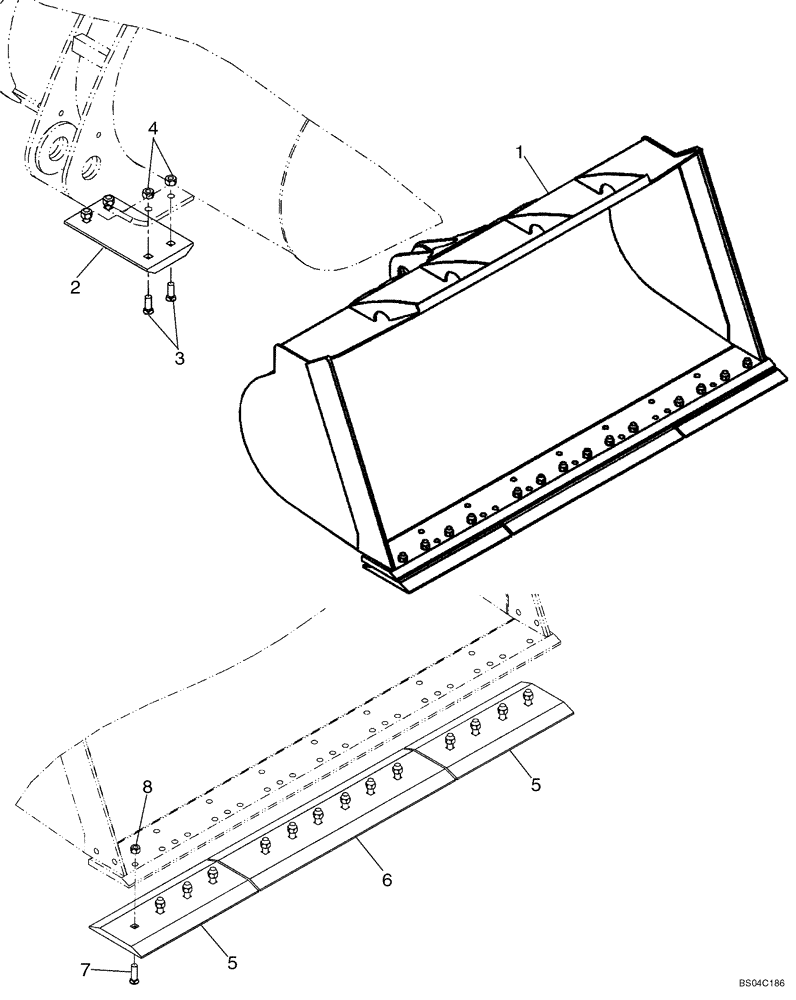

Схема запчастей Case 1121F - (82.100.05) - LOADER BUCKET WITH BOLT ON EDGE,FLAT BOTTOM, 6.54 YD - EUROPE (82) - FRONT LOADER & BUCKET
6
8
5
4
5
1
3
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84378658

BUCKET

6.54 Yd Bucket with Blade; Includes Refs 2 - 8

1шт.

2

84379364

PLATE

Bottom; Bolt On

2шт.

3

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

84378660

CUTTING EDGE

Outer; Bolt On

2шт.

6

76034790

CUTTING EDGE

Inner; Bolt On

1шт.

7

79048375

PLOW BOLT,Plow, M24 x 2 x 92mm, Cl 10.9

11шт.

8

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

11шт.
