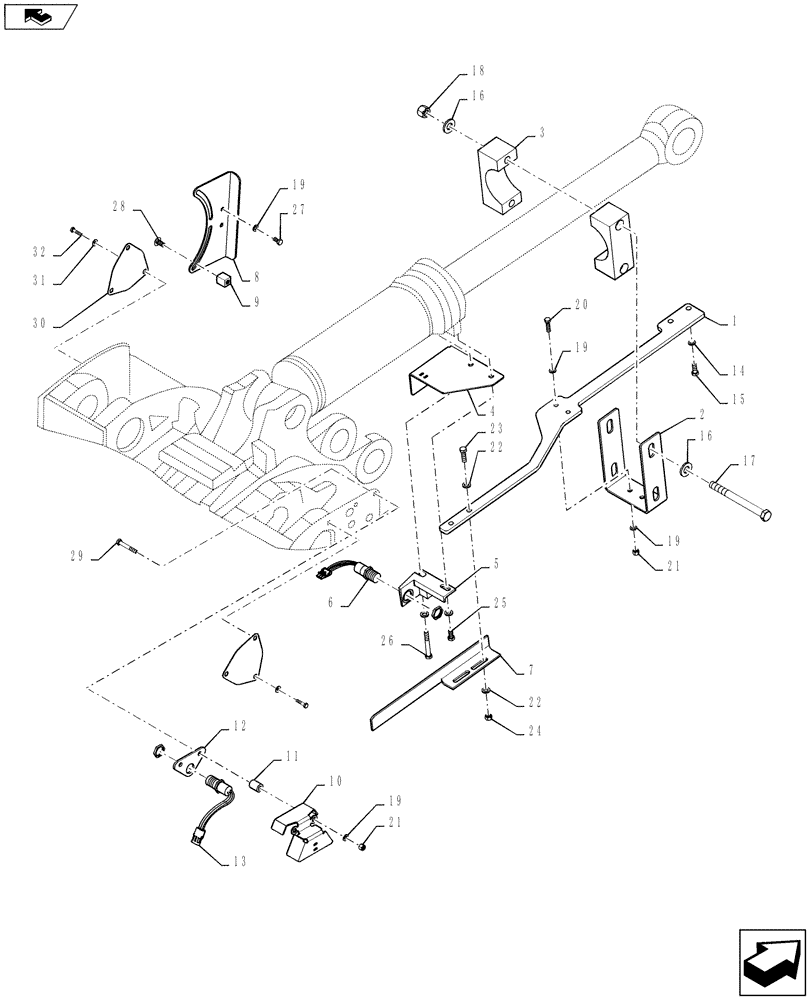

Запчасти Case 1121F (55.746.02) - CONTROL INSTALLATION - RTD, HGT, AND RTT, TORQUE CONV XR/LR (55) - ELECTRICAL SYSTEMS

1

84357743

BRACKET, SUPPORTING

1шт.

2

84357753

BRACKET, SUPPORTING

1шт.

3

84357747

CLAMP,127mm ID

1шт.

4

84355879

PROTECTIVE COVER

1шт.

5

L125983

SUPPORT

1шт.

6

1546497C1

SWITCH

1шт.

7

87363671

SUPPORT

1шт.

8

87694569

PLATE

1шт.

9

87437102

BLOCK

2шт.

10

84307369

PROTECTIVE COVER

1шт.

11

84307069

SPACER

2шт.

12

87534446

BRACKET

1шт.

13

1546498C1

SWITCH

1шт.

14

892-11012

LOCK WASHER,M12

2шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

16

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

17

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

2шт.

18

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

20

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

23

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

24

829-1412

NUT,M12, Cl 10.9

2шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

26

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

27

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

28

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

29

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

30

84357783

BRACKET

2шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

32

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.
