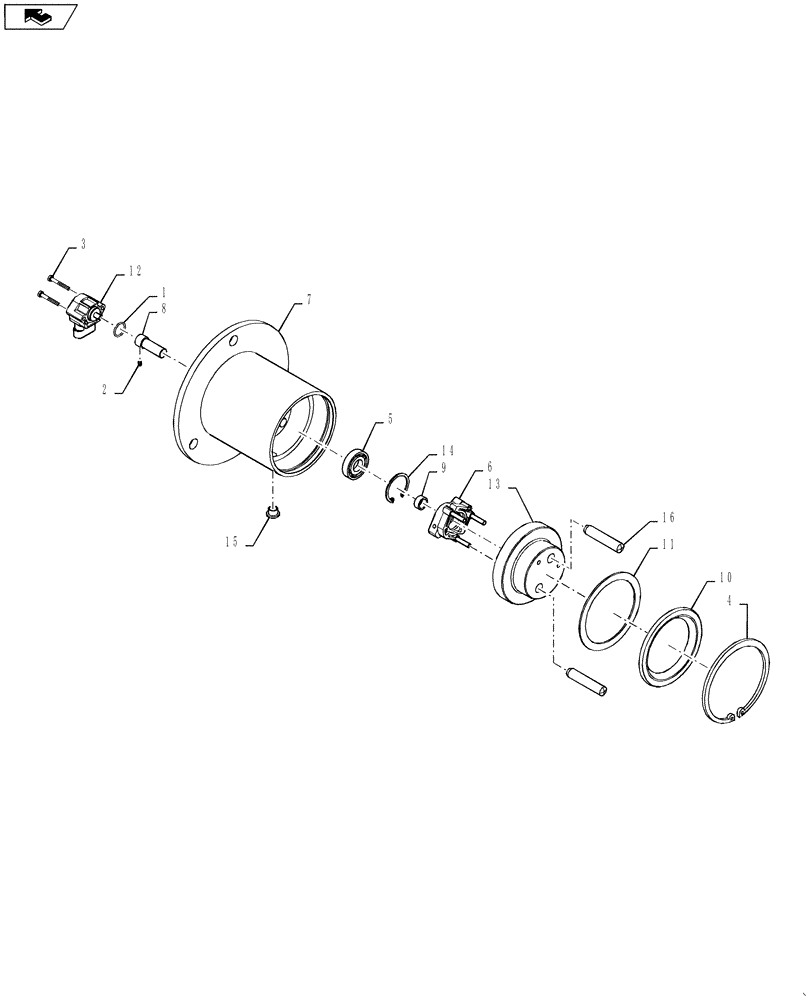

Запчасти Case 1121F (55.746.01[02]) - SENSOR ASSY, LIFT AND DUMP (55) - ELECTRICAL SYSTEMS

1

638-62160

O-RING,16mm ID x 1.8mm Width

1шт.

2

877-1046

SET SCREW,M4 x 6mm

1шт.

3

385682

BOLT,Hex, M4 x 30mm, Cl 8.8

2шт.

4

11075175

SNAP RING,M105, Int

105mm

1шт.

5

84271402

BALL BEARING

63012RSH

1шт.

6

84271405

FLEXIBLE COUPLING

CPS 23.1

1шт.

7

84298351

CASE

Machined Rotary Sensor ZP

1шт.

8

84298356

SHAFT

Rotary Sensor ZP

1шт.

9

84298359

SPACER

ID12 X 7 ZP

1шт.

10

84298363

SEAL

RING OD 105

1шт.

11

84304632

SHIM

ID 86 X OD104.7 (2.0THK)

1шт.

12

84313728

SENSOR

Rotary

1шт.

13

84395959

FLEXIBLE COUPLING

Driver

1шт.

14

86536802

SNAP RING,M37, Int

1шт.

15

87681201

PLUG,M16 x 11.70mm

16x11.7mm

1шт.

16

87779061

DOWEL,M12 x 60

Pin; 12x60mm

2шт.
