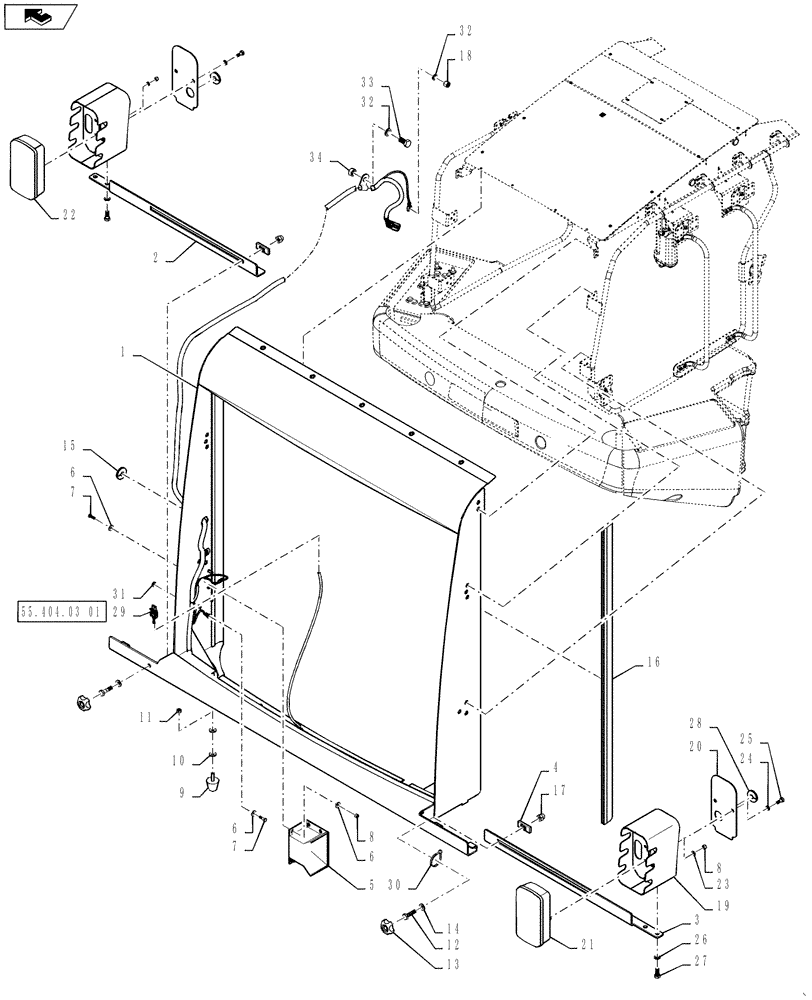

Запчасти Case 1121F (55.404.03) - TAIL LIGHT INSTALLATION EU (55) - ELECTRICAL SYSTEMS

1

84479650

GRILLE

1шт.

2

84395949

BRACKET

Right Hand

2шт.

3

84395948

BRACKET

Left Hand

2шт.

4

84395951

NUT

T

2шт.

5

D121972

ALARM

Back-Up

1шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

9шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

5шт.

8

832-10406

NUT,M6 x 1, Cl 8

8шт.

9

N7673

BUMPER

Rubber

2шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

13

87593666

KNOB

Light Bracket

2шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

15

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Rubber

1шт.

16

84402111

RUBBER SEAL,1048mm L

2шт.

17

14054911

NUT,Dome Hex, M10 x 1.25

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

87364648

SUPPORT

4шт.

20

84422230

PLATE

4шт.

21

87364651

LIGHT ASSY.,24V, 21W, Amber/Red

3шт.

22

87364652

LIGHT ASSY.,24V, 21W, Amber/Red

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

892-11008

LOCK WASHER,8mm ID

4шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

26

892-11010

LOCK WASHER,M10

4шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

28

248-2344

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Rubber

2шт.

29

84497821

WIRE HARNESS

Harness See Fig 55.404.03 (01) EU

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

31

893-10006

LOCK WASHER,Ext Tooth, M6

1шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
