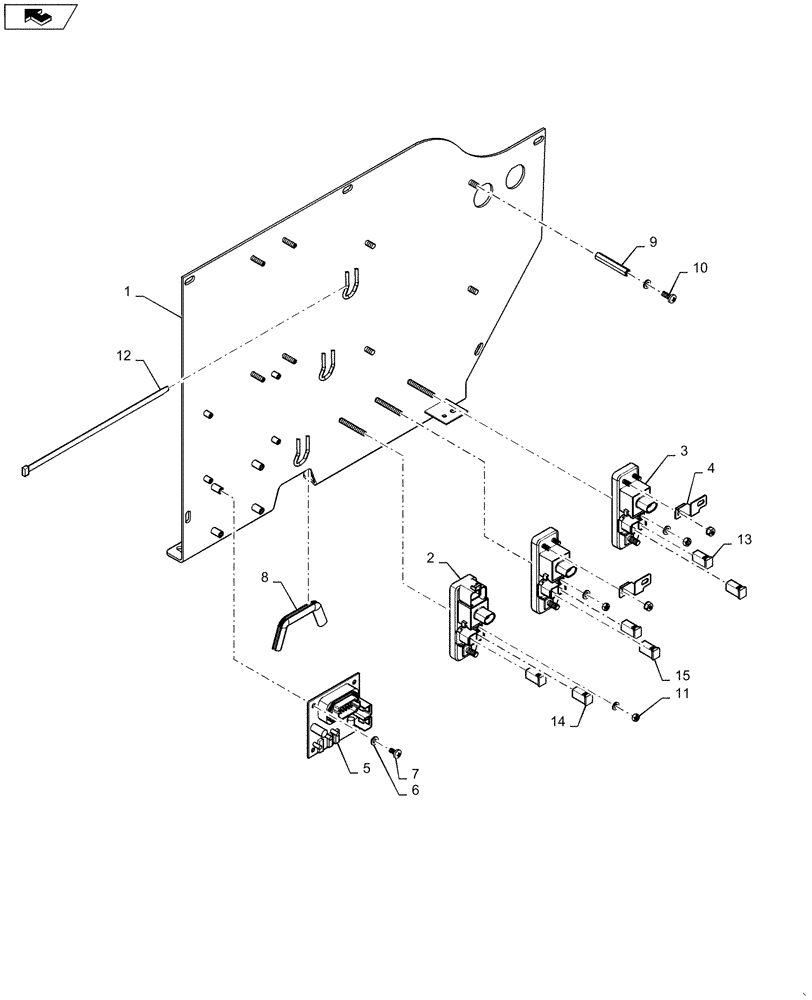

Запчасти Case 1121F (55.100.18) - RIGHT CONSOLE - FUSE AND RELAY MOUNTING - HVT ONLY (55) - ELECTRICAL SYSTEMS

1

84379430

ELECTRIC PANEL

Assembly

1шт.

2

87318627

MODULE

Power Relay

1шт.

3

87315250

MODULE

Electrical Center

2шт.

4

87318620

BAR

RTMR to PRM Bus

2шт.

5

232364A1

FLASHER UNIT

Module

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

7

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4шт.

8

84379002

WEATHERSTRIP

1шт.

9

87700052

BUSHING,Hex, M6 x 1 x 57mm L

Hexagonal

4шт.

10

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

4шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

12

885180004

CLAMP

Cable

3шт.

13

87327342

FUSE,30 Amp

32v; 30A

1шт.

14

87327335

FUSE,20 Amp

32v, 20A

3шт.

15

87327346

FUSE,40A, Green

32v; 40A

2шт.
