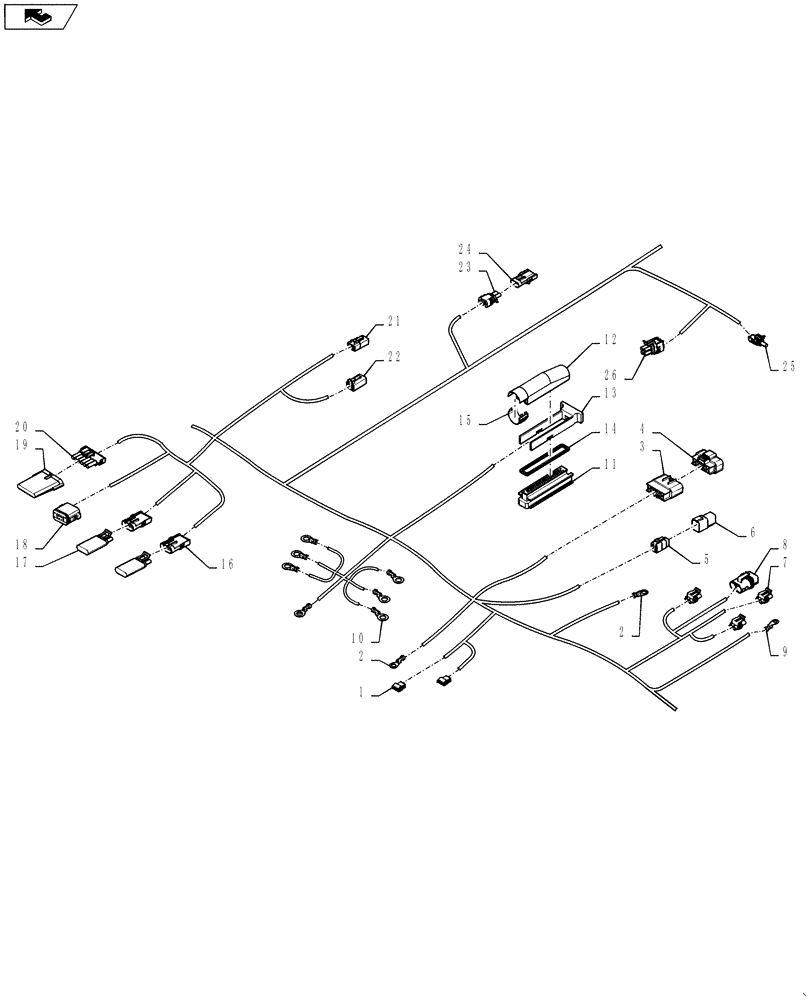

Запчасти Case 1121F (55.100.13[02]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

1

199436A1

CONNECTOR, ELEC

CONNECTOR

2шт.

2

1964722C1

TERMINAL CONNECTOR

Ring Terminal

2шт.

3

388708A1

CONNECTOR, ELEC

CONNECTOR

1шт.

4

388710A1

CONNECTOR, ELEC

CONNECTOR

2шт.

5

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.

6

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

7

256340A1

CONNECTOR, ELEC

CONNECTOR

3шт.

8

409084A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

9

1964710C1

TERMINAL CONNECTOR

Ring

1шт.

10

1964718C1

TERMINAL CONNECTOR

Ring

7шт.

11

NSS

NOT SOLD SEPARAT

68-Cavity

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

Locking

1шт.

14

NSS

NOT SOLD SEPARAT

68-Pin Connector

1шт.

15

NSS

NOT SOLD SEPARAT

68-Pin Connector

1шт.

16

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Receptacle

2шт.

17

A187874

MODULE

2шт.

18

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity

1шт.

19

A187813

DIODE

1шт.

20

245488C1

ELEC CONNECTOR,6 Pin

6-Cavity Plug

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.

22

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-Cavity Plug

1шт.

23

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

25

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Plug

1шт.

26

245715C1

ELEC CONNECTOR,4 Pin

4-Cavity Plug

1шт.
