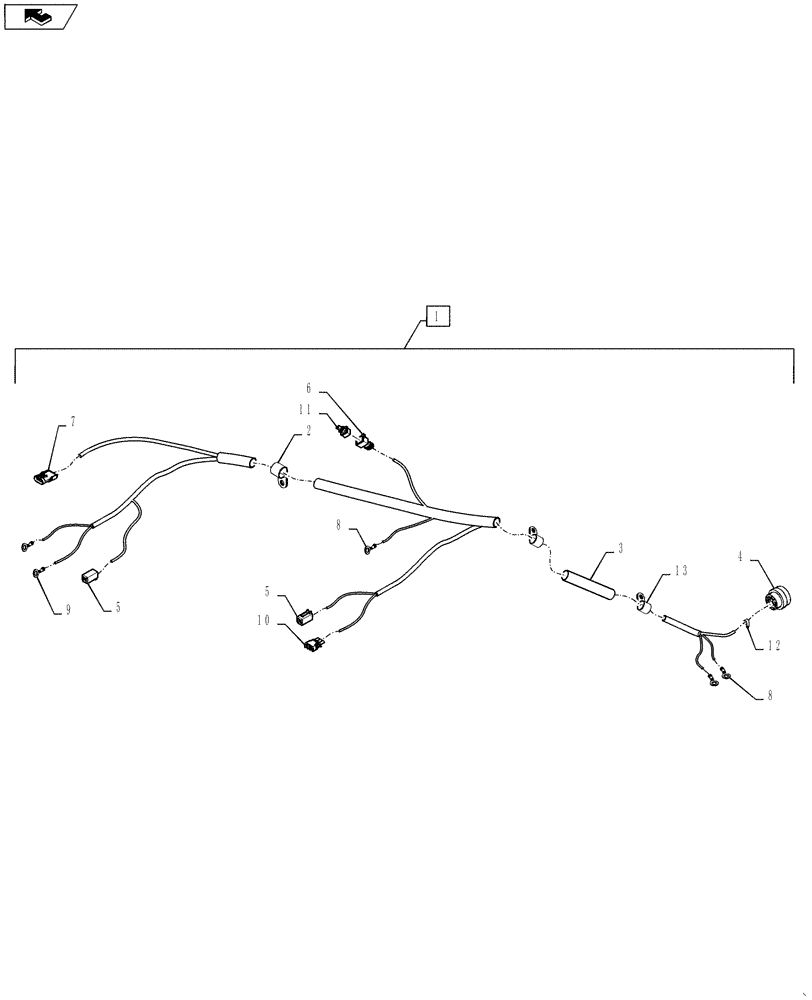

Запчасти Case 1121F (55.100.04[01]) - FRONT CHASSIS HARNESS (55) - ELECTRICAL SYSTEMS

1

84342033

WIRE HARNESS

Front Chassis, Incl. 2-14

1шт.

2

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

3

NSS

NOT SOLD SEPARAT

Splice

3шт.

4

319149A1

CONNECTOR, ELEC

CONNECTOR 18-Cavity Receptacle

1шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

2шт.

6

291718A1

ELEC CONNECTOR,Female, 2 Pin

2-Pin Plug

1шт.

7

245484C1

ELEC CONNECTOR,3 Pin

3-Cavity Plug

1шт.

8

1964718C1

TERMINAL CONNECTOR

3шт.

9

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

2шт.

10

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Receptacle

1шт.

11

291717A1

ELEC CONNECTOR,Male, 2 Pin

2-Pin Receptacle

1шт.

12

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

1шт.

13

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.
