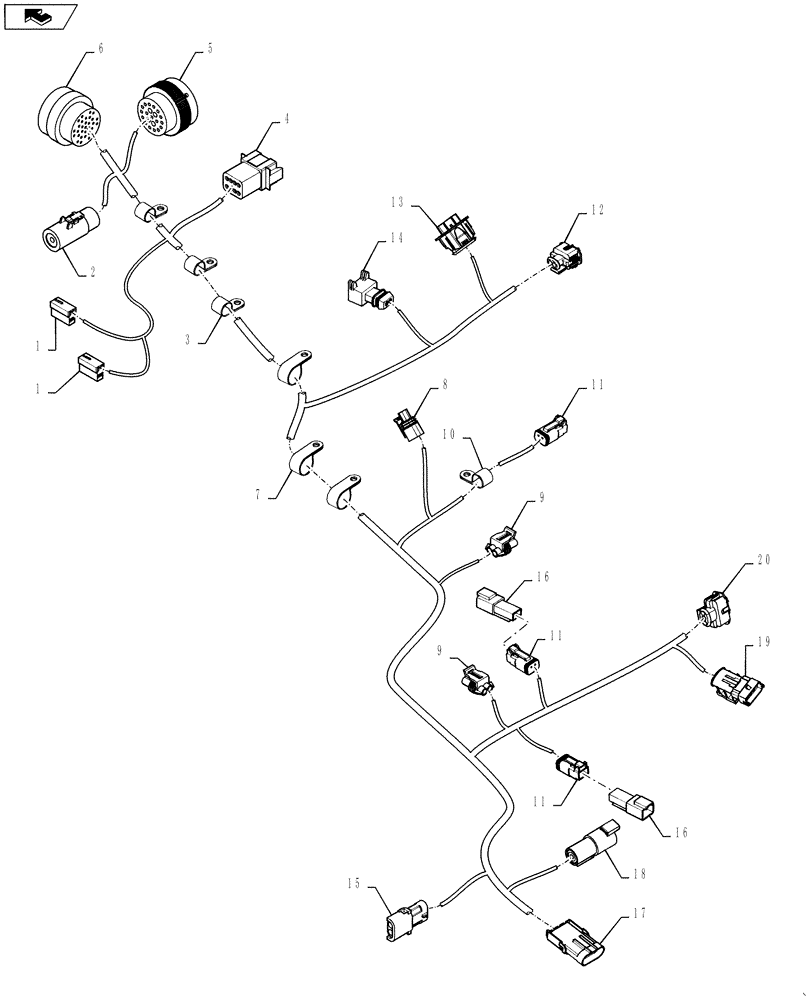

Запчасти Case 1121F (55.100.03[02]) - ENGINE HARNESS REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

3227856R1

CONNECTION

2-Cavity Receptacle

2шт.

2

277431A1

CONNECTOR, ELEC

CONNECTOR 1-Cavity Plug

1шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

4

225411C1

CONNECTOR, ELEC

CONNECTOR 8-Cavity Receptacle

1шт.

5

87703998

TERMINAL CONNECTOR

21-Way Receptacle

1шт.

6

374973A1

CONNECTOR,ELECTRIC

31-Cavity Plug

1шт.

7

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

8

194788A1

CONNECTOR, 2-POLE

2-Cavity Plug

1шт.

9

256340A1

CONNECTOR, ELEC

CONNECTOR

2шт.

10

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

11

225316C1

ELEC CONNECTOR,Female, 2 Pin

3шт.

12

87709793

WIRE CONNECTOR,Female, 2 Cavities

1шт.

13

87709809

ELEC CONNECTOR

1шт.

14

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin Plug

1шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

16

225315C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

2шт.

17

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Receptacle

1шт.

18

87706435

TERMINAL CONNECTOR

1шт.

19

84146691

MULTIPOLE CONNECTOR,Male, 5 Pole

1шт.

20

87747172

WIRE CONNECTOR,Female

1шт.
