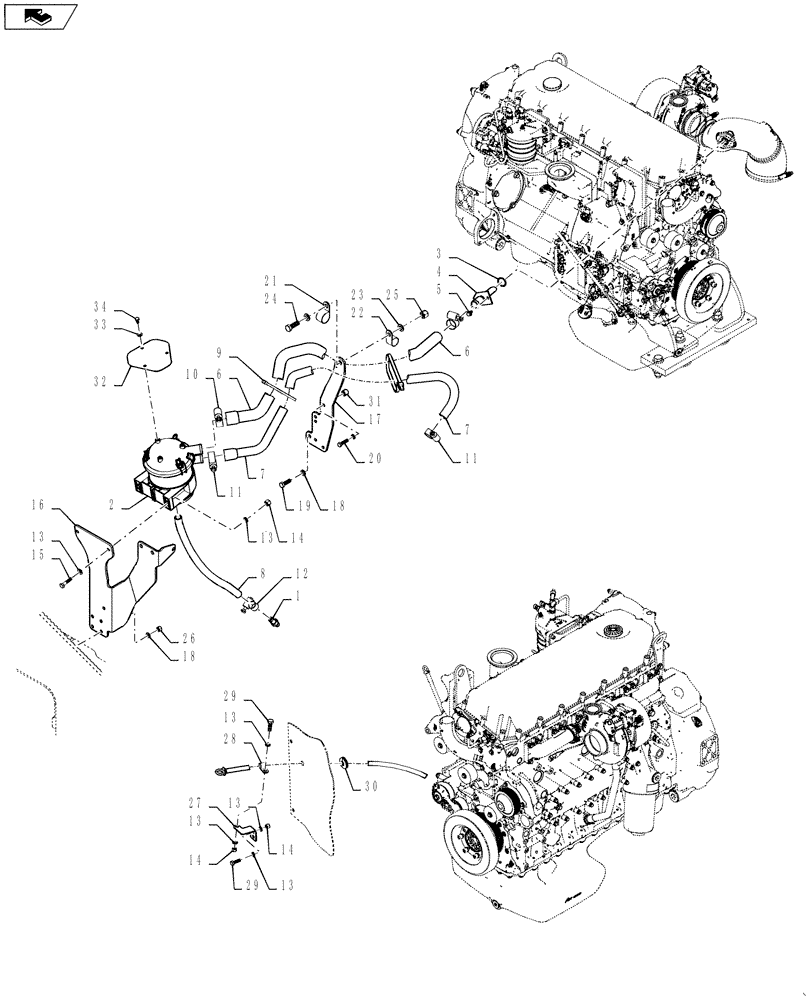

Запчасти Case 1121F (10.001.01[02]) - ENGINE MOUNTING, CRANK CASE VENT (10) - ENGINE

1

84326458

CHECK VALVE

Crank Case

1шт.

2

84326459

FILTER ASSY

Remote, For Element See 35

1шт.

3

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

4

84327120

VENTILATION PIPE

Return

1шт.

5

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

6

84368565

INTAKE AIR HOSE

Filter to Air Intake

1шт.

7

84348643

HOSE

, Serial Range: Engine-Filter

1шт.

8

84363227

HOSE

Filter Oil Drain

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

10

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

11

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

3шт.

12

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

15

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

16

84424346

BRACKET, SUPPORTING

Fuel Filter

1шт.

17

84511287

BRACKET, SUPPORTING

Harness

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

20

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

21

515-25349

CLAMP,1 3/8", Insul, 1/2" Bolt

1шт.

22

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

24

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

27

84468240

BRACKET

Dipstick

1шт.

28

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

29

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

30

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

31

87439665

SPACER,11.30mm ID x 15.88mm OD x 19.50mm L

1шт.

32

84529737

FILTER COVER

Filter

1шт.

33

892-11006

LOCK WASHER,M6

3шт.

34

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

35

84376809

ELEMENT

1шт.
