Запчасти Case 1121F (50.206.01[01]) - CAB - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL

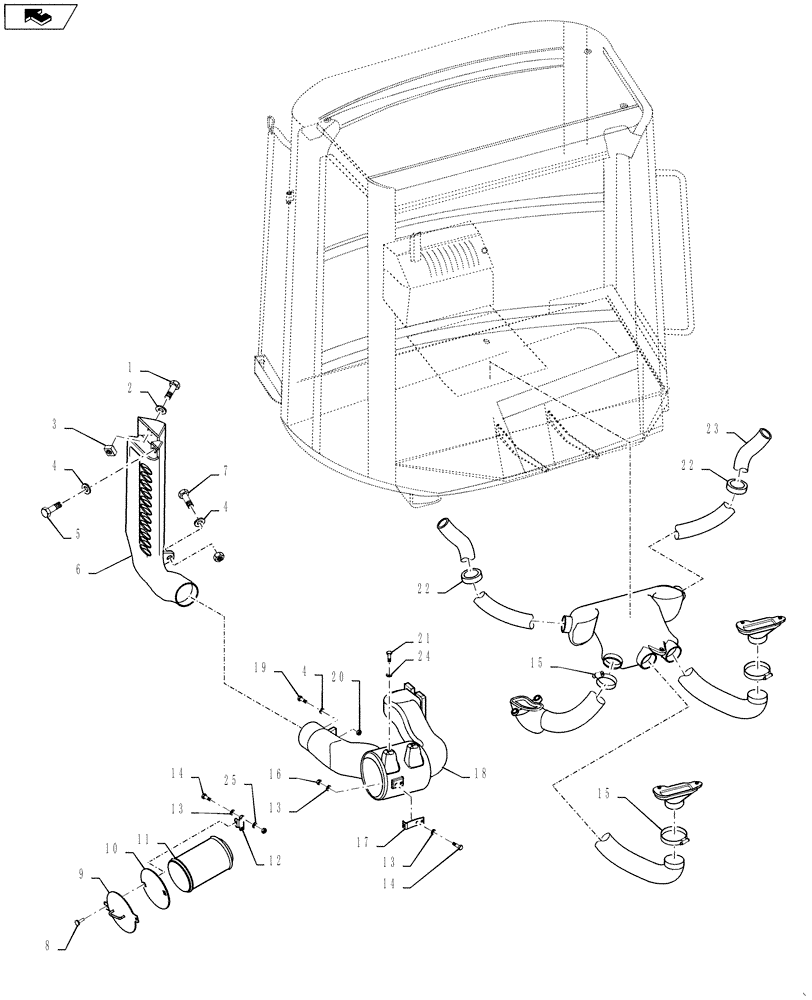

Схема запчастей Case 1121F - (50.206.01[01]) - CAB - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL
18
3
11
1
14
23
12
home
6
21
22
20
17
8
24
2
16
7
13
19
4
13
4
10
25
4
9
15
13
22
14
5
15

Артикул

Название

Примечание

Количество

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

2

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

3

76303594

SQUARE NUT

Square

1шт.

4

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

56605

BOLT,Hex, M8 x 55, 8.8

1шт.

6

76303027

AIR DUCT

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

8

154227213

KNOB

2шт.

9

76303615

COVER

Air Filter Housing

1шт.

10

76303546

SEAL,145mm ID x 195mm OD x 5mm Thk

Filter Cover

1шт.

11

87712194

CAB FILTER,Standard

HVAC

1шт.

12

84234542

CAB FILTER,Carbon

HVAC

1шт.

12

76303541

BRACKET

Right Air Filter

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

15

87040758

HOSE CLAMP,71.4mm - 95.2mm

Selflocking

8шт.

16

832-10406

NUT,M6 x 1, Cl 8

4шт.

17

76303617

BRACKET

Left Air Filter

1шт.

18

76303614

AIR DUCT

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

20

86528579

NUT,M8 x 1.25

1шт.

21

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

22

76303500

GASKET,Square, 10mm Thk x 70mm ID

HVAC Tube

2шт.

23

76303504

VENTILATION PIPE

TUBE

1шт.

24

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

25

87610851

LOCK NUT,M6 x 17mm OD

Push Retainer M6

2шт.

Выбрано товаров: 26
