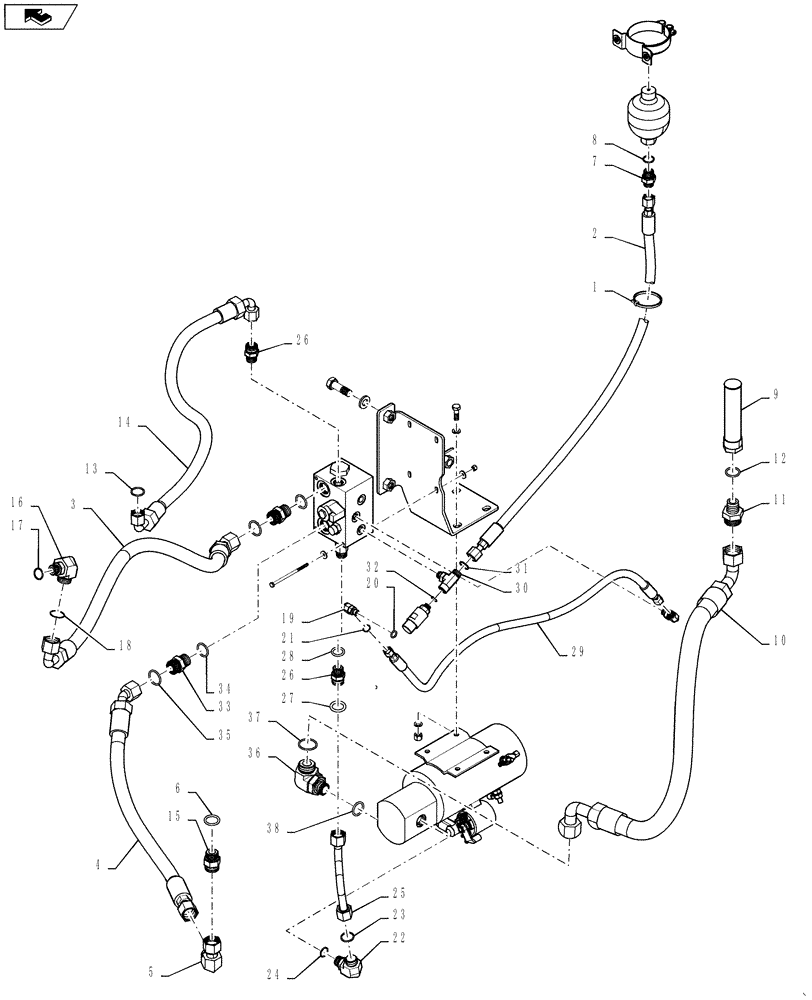

Запчасти Case 1121F (41.200.02[01]) - AUXILIARY STEERING HYDRAULIC LINES AND FITTINGS (44) - WHEELS

1

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

12шт.

2

84528091

HOSE ASSY.

, Serial Range: Accumulator-Manifold

1шт.

3

84422211

HOSE ASSY.

, Serial Range: Manifold-Orbitrol

1шт.

4

84374364

HOSE ASSY.

Priority valve to Aux Steering Valve

1шт.

5

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Also Order 6

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

76045654

HYD CONNECTOR

Also Order 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

L129303

FILTER SCREEN

1шт.

10

84411999

HOSE ASSY.

, Serial Range: Tank-Pump

1шт.

11

87433494

HYD CONNECTOR

Also Order 12

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

84415051

HOSE ASSY.

To Return Manifold

1шт.

15

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

16

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Also Order 17-18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Also Order 20-21

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

22

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Also Order 23-24

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

84349986

HYD TUBE

, Serial Range: Relief-Return

1шт.

26

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Also Order 27-28

2шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

28

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

29

84419579

HOSE ASSY.

, Serial Range: Orbitrol-Manifold

1шт.

30

87725512

TEE

Also Order 31-32

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 34-35

2шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

35

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

36

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 37-38

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
