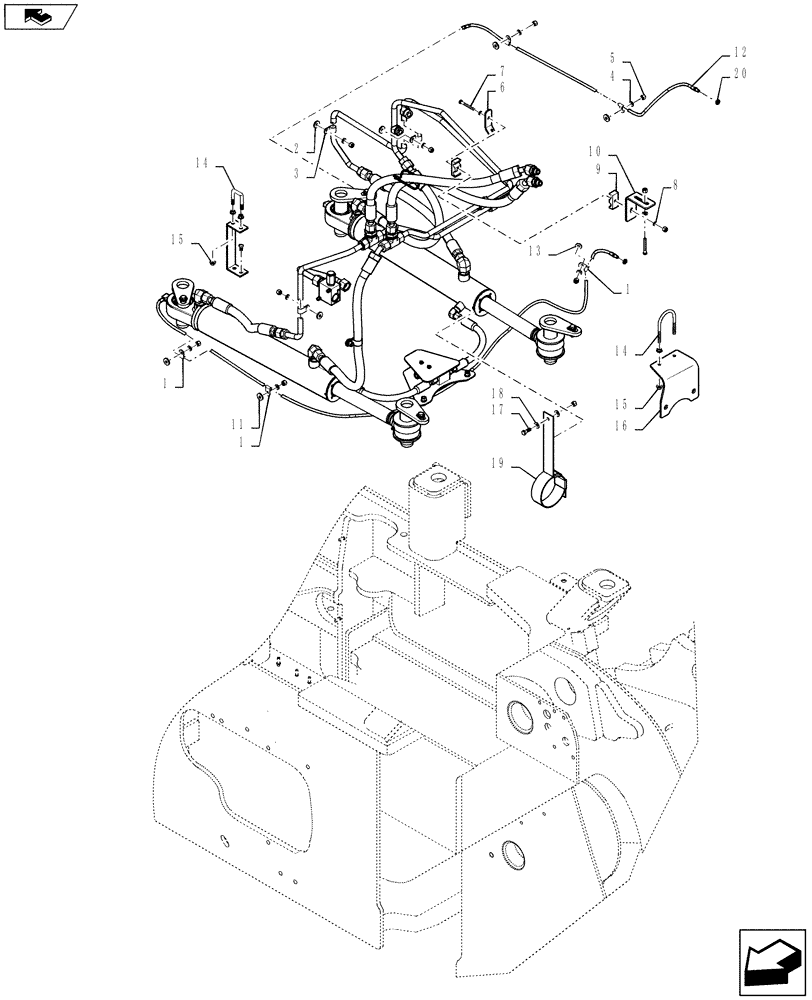

Запчасти Case 1121F (41.216.03) - STEERING HYDRAULIC LINE INSTALLATION (41) - STEERING

1

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

8шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

3

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

6

84468964

BRACKET

Front Brake Hose Support

1шт.

7

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

87000140

CLAMP,Tube, 19.05mm

1шт.

10

84539846

BRACKET

Bracket

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

9шт.

12

84483026

HOSE,4.83mm ID x 1355mm L

Grease Left

1шт.

13

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

14

87349269

U-BOLT

BOLT "U"

2шт.

15

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

16

84307066

BRACKET, SUPPORTING

Pilot Line

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

19

87349992

CABLE TIE

CABLE STRAP

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

2шт.
