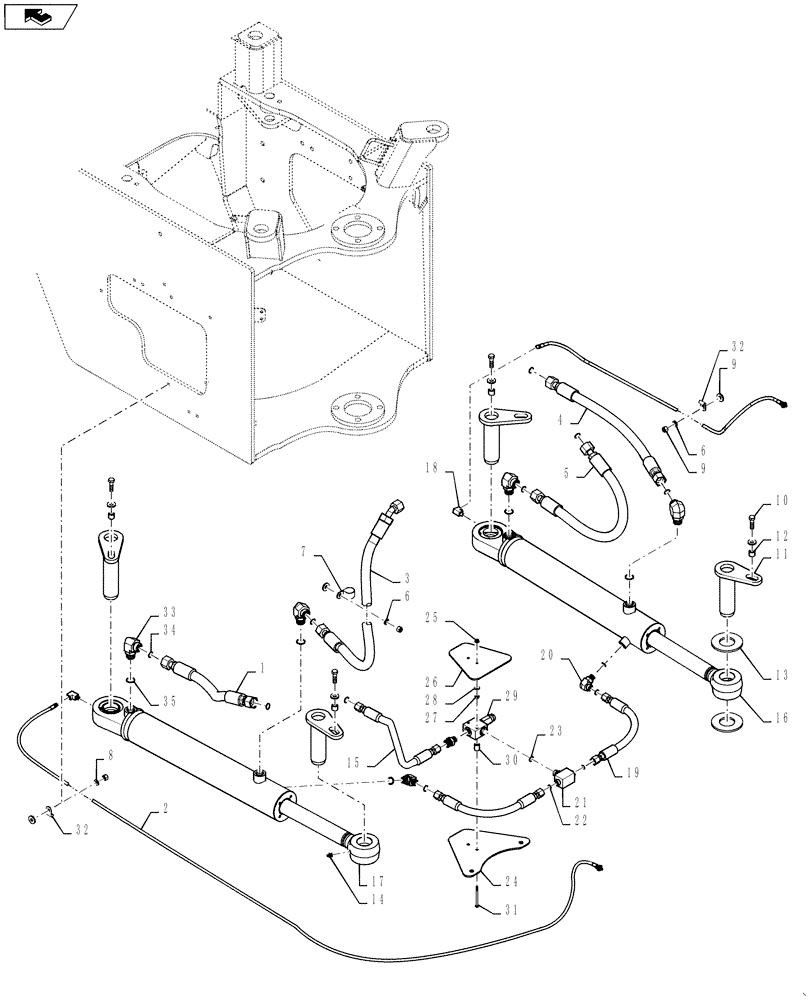

Запчасти Case 1121F (41.216.01) - STEERING HYDRAULIC CYLINDERS (41) - STEERING

1

84491900

HOSE,19.05mm ID x 512.6mm L, SAE 100R12

Cylinder Bore, Right

1шт.

2

84483025

HOSE,3.56mm ID x 2378mm L

Grease, Right

1шт.

3

84491906

HOSE,19.05mm ID x 898mm L, SAE 100R17

Cylinder, Right Hand Rod

1шт.

4

84491909

HOSE,19.05mm ID x 613mm L, SAE 100R12

Cylinder, Left Hand Rod

1шт.

5

84491907

HOSE,19.05mm ID x 795.4mm L, SAE 100R12

Cyclinder Bore

1шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

7

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

11

87380685

PIN,50.76mm OD x 184mm L

4шт.

12

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

4шт.

13

84305591

WASHER

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

15

84391514

HYD TUBE

Steering Relief

1шт.

16

84404910

STEERING CYLINDER

Left Hand

1шт.

16

84404910R

REMAN-HYD CYLINDER

1121F WHEEL LOADER TIER 4 (NA), Left Hand (4/10-)

1шт.

16

84404910C

CORE-HYD CYLINDER

Return Number

1шт.

17

84402182

STEERING CYLINDER

Right Hand

1шт.

17

84402182R

REMAN-HYD CYLINDER

1121F WHEEL LOADER TIER 4 (NA), Right Hand (4/10-)

1шт.

17

84402182C

CORE-HYD CYLINDER

Retrun Number

1шт.

18

328082A1

ELBOW

2шт.

19

84391512

HOSE ASSY.,12.7mm ID x 417mm L

Relief Valve

2шт.

20

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

21

84391530

CHECK VALVE

Also Order 22,23

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

84528071

BRACKET

Relief

1шт.

25

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

26

84528072

COVER PLATE

Relief

1шт.

27

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

28

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

29

84346122

VALVE PRESSURE RELIE

Steering Cylinder

1шт.

30

87563043

SPACER

2шт.

31

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

32

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

33

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 34, 35

4шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

35

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.
