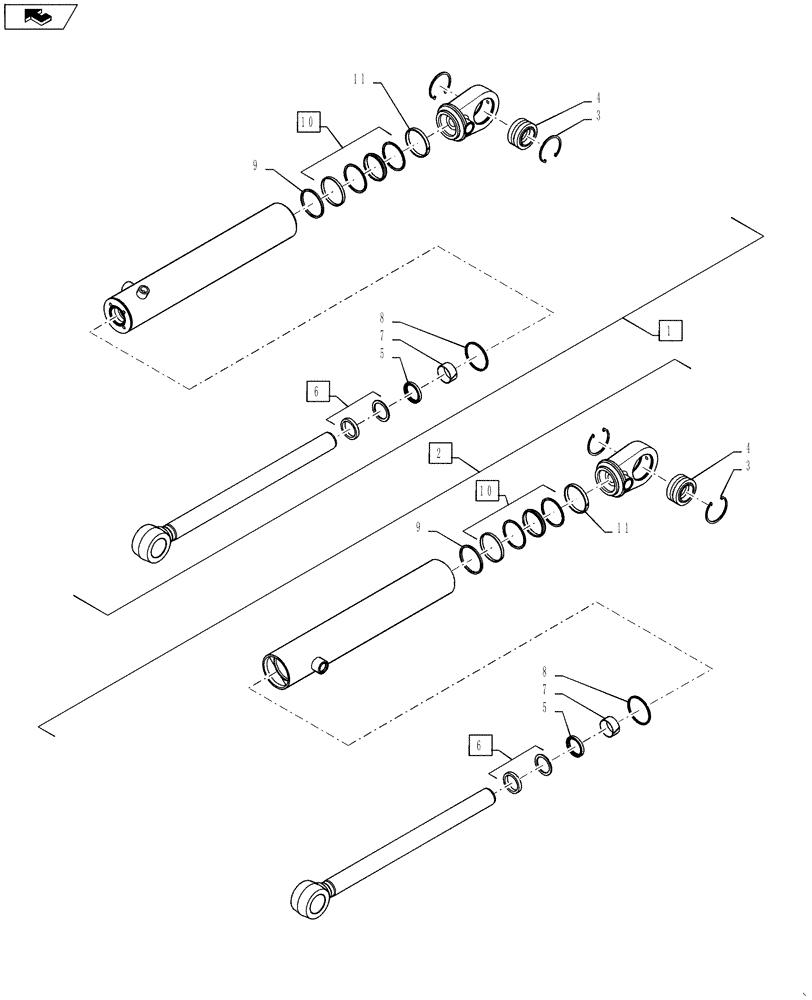

Запчасти Case 1121F (41.216.01[01]) - STEERING CYLINDER SEALS/HARDWARE (41) - STEERING

1

84404910

STEERING CYLINDER

Left Hand, Inc. 3-11

1шт.

1

84404910R

REMAN-HYD CYLINDER

1121F WHEEL LOADER TIER 4 (NA), Left Hand (4/10-)

1шт.

1

84404910C

CORE-HYD CYLINDER

Return Number

1шт.

2

84402182

STEERING CYLINDER

Right Hand, Inc. 3-11

1шт.

2

84402182R

REMAN-HYD CYLINDER

1121F WHEEL LOADER TIER 4 (NA), Right Hand (4/10-)

1шт.

2

84402182C

CORE-HYD CYLINDER

Return Number

1шт.

3

NLS

NO LONGER SERVICED

RING SNAP

2шт.

4

S109373

BUSHING

Self-Aligning

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper Rod

1шт.

6

1542876C1

SEAL KIT,50.8mm Rod

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

Bearing Rod

1шт.

8

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

Static Head

1шт.

9

238799A1

SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk

1шт.

10

87715783

SEAL,76.45mm ID x 88.9mm OD

1шт.

11

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Ring Wear

1шт.
