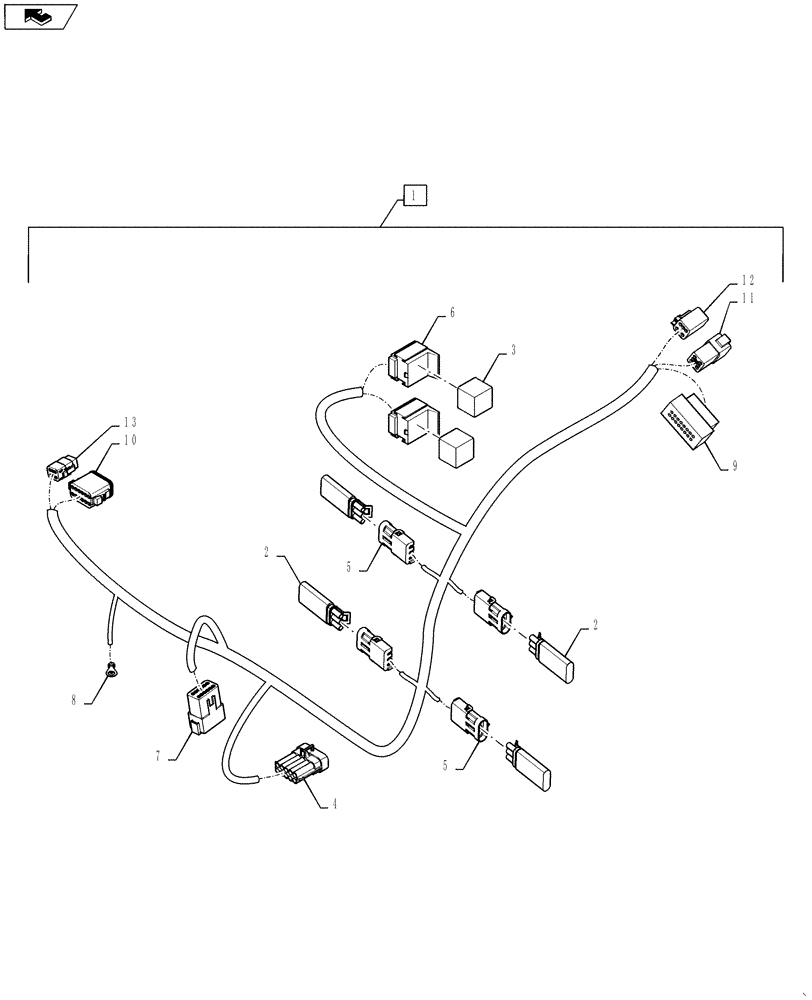

Запчасти Case 1121F (41.200.09[01]) - JOYSTICK HARNESS, CAB (41) - STEERING

1

84152428

WIRE HARNESS

Cab, Includes 2-13

1шт.

2

A187874

MODULE

4шт.

3

326845A1

RELAY,24V

2шт.

4

256354A1

CONNECTOR, ELEC

CONNECTOR FNR Console

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Receptacle

4шт.

6

245731C1

CONNECTOR, ELEC

CONNECTOR 5-Cavity Minirelay Plug

2шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Cavity Receptacle

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

NSS

NOT SOLD SEPARAT

Connector 16 Pin

1шт.

10

225402C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity Plug

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

1шт.

13

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.
