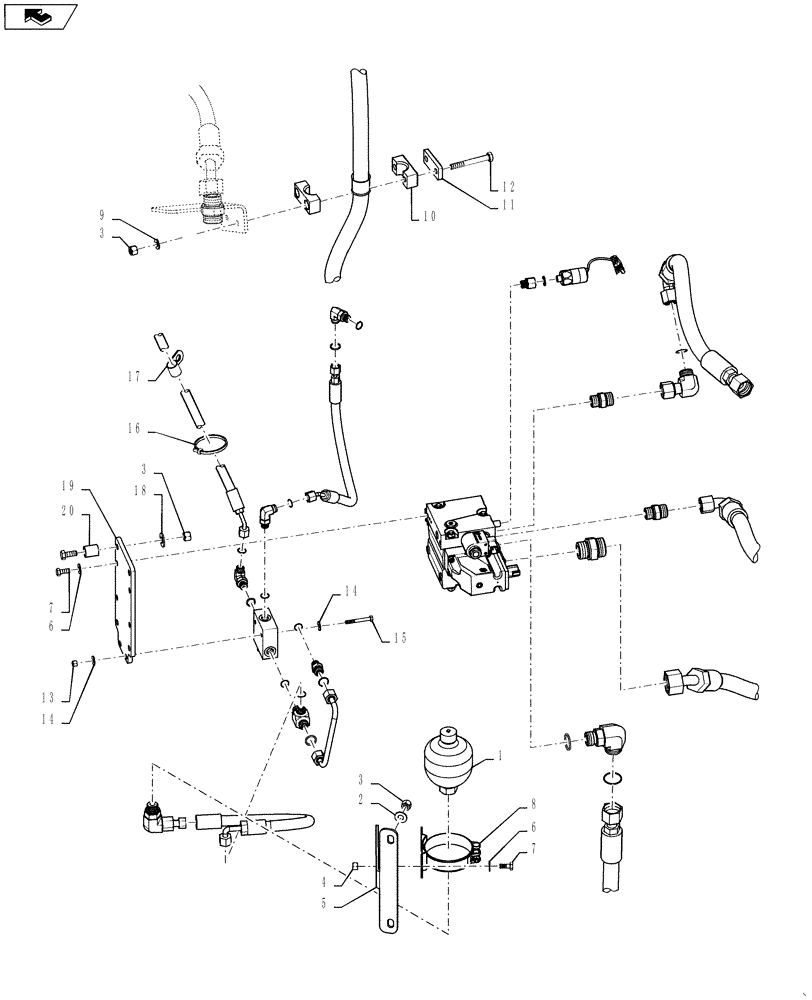

Запчасти Case 1121F (41.200.05[03]) - STANDARD STEERING WITH JOYSTICK HARDWARE AND ACCUMULATOR (41) - STEERING

1

87746283

ACCUMULATOR

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

87741113

BRACKET

Accumulator

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

8

87750434

CLAMP

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

372453A1

BLOCK

Tube Mounting

1шт.

11

367658A1

PLATE

Clamp Cover

1шт.

12

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

13

832-10406

NUT,M6 x 1, Cl 8

2шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

17

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

18

895-15012

WASHER,M12 x 28 x 2.5

4шт.

19

84361297

BRACKET

Steering Valve

1шт.

20

450492R1

SPACER,1/2" Pipe x 1"

4шт.
