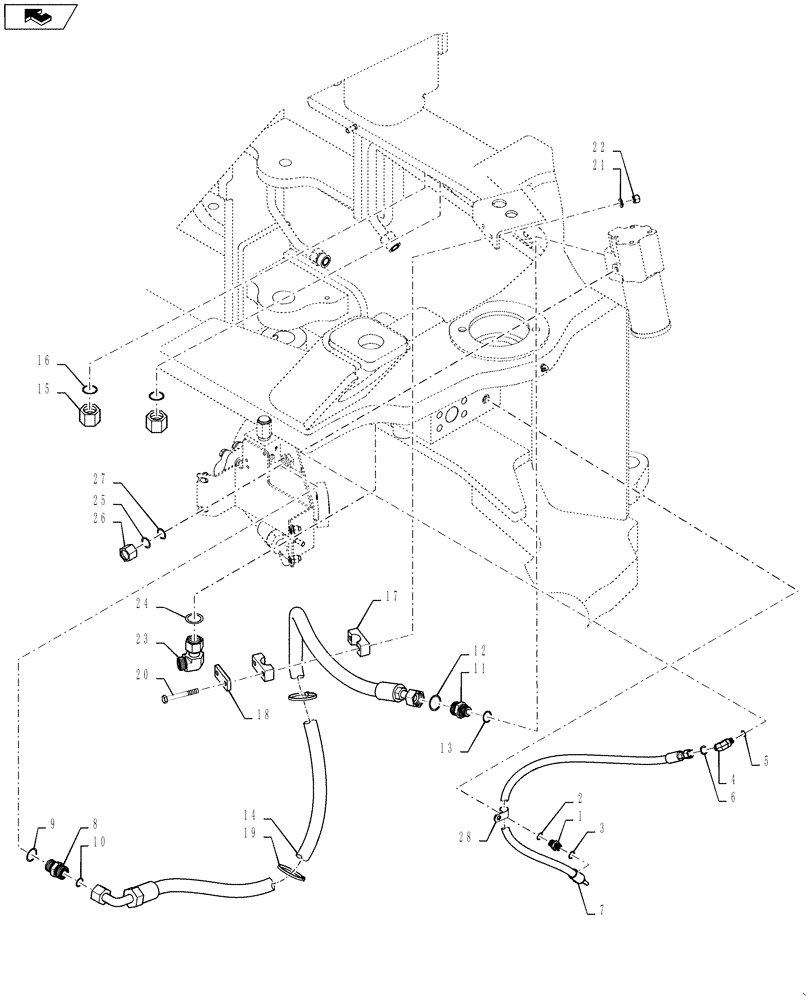

Запчасти Case 1121F (41.200.04) - STANDARD AND SECONDARY STEERING NO JOYSTICK (41) - STEERING

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Also Order 2-3

1шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Also Order 5-6

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

7

84377157

HOSE ASSY.,6.35mm ID x 1114mm L, SAE 100R2

Load Sense

1шт.

7

84377156

HOSE ASSY.

Load Sense, With Secondary Steering

1шт.

8

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 9-10

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Also Order 12-13

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

14

84361701

HOSE ASSY.

Orbitrol to Relief Valve

1шт.

15

701-907

CAP,1-3/16" - 12

Also Order 16

2шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

372453A1

BLOCK

Tube Mounting

1шт.

18

367658A1

PLATE

Cover Plate

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Also Order 24, Start Serial: NCF215302

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

701-906

CAP,1" - 14

Also Order 27

1шт.

27

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.
