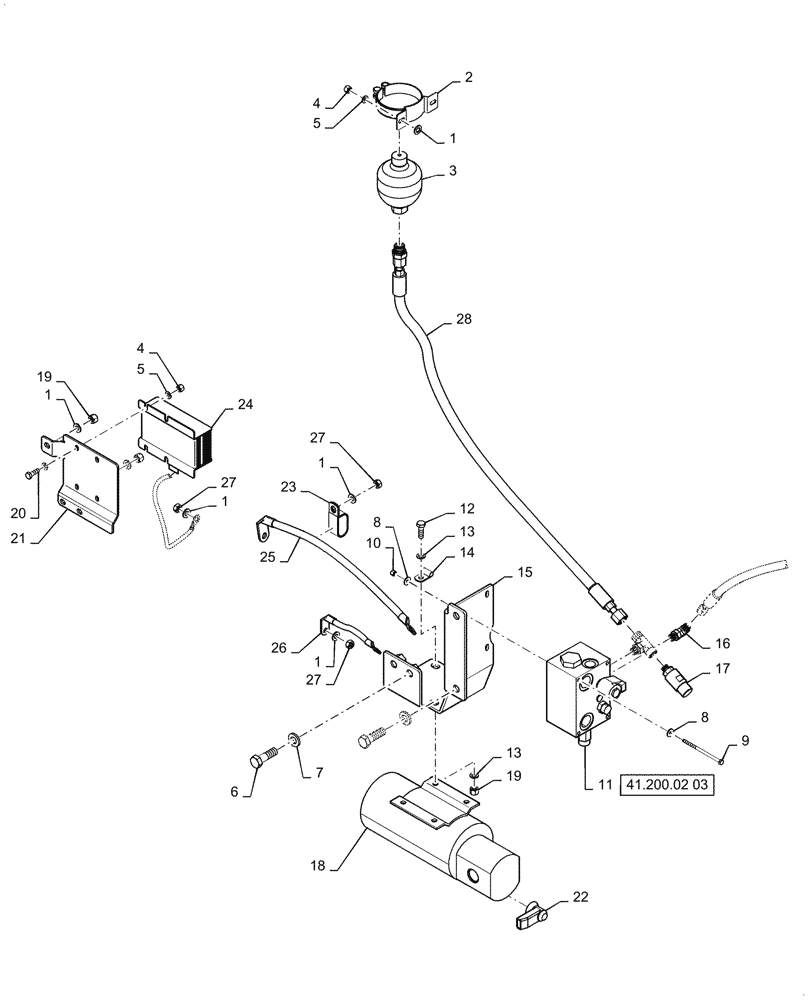

Запчасти Case 1121F (41.200.02[02]) - AUXILIARY STEERING ACCUMULATOR AND HARDWARE (41) - STEERING

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

2

87750434

CLAMP

1шт.

3

87746283

ACCUMULATOR

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

9

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

10

832-10406

NUT,M6 x 1, Cl 8

4шт.

11

87609806

MANIFOLD

See Fig. 41.200.02 (03)

1шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

14

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

15

84372364

BRACKET, SUPPORTING

Manifold

1шт.

16

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

17

398888A1

PRESSURE SWITCH

1шт.

18

87581480

ELECTRIC PUMP

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

21

84392534

BRACKET, SUPPORTING

Accumlator Hose

1шт.

22

L126713

BOOT

1шт.

23

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

24

8603171

MODULE

Secondary Steering

1шт.

25

84389140

ELECTRIC CABLE,3725mm L

B+

1шт.

26

84389141

NEG BATTERY CABLE

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

28

84528091

HOSE ASSY.

1шт.
